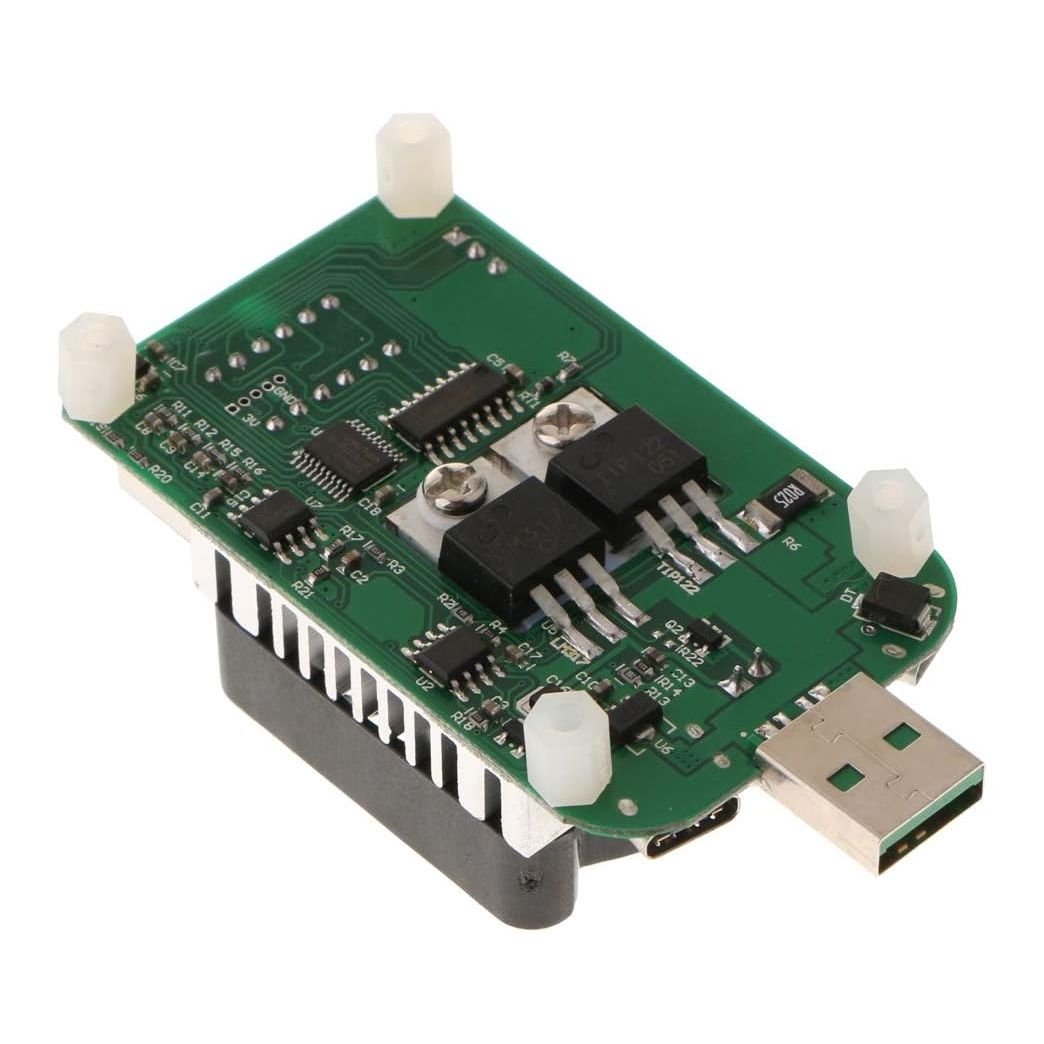

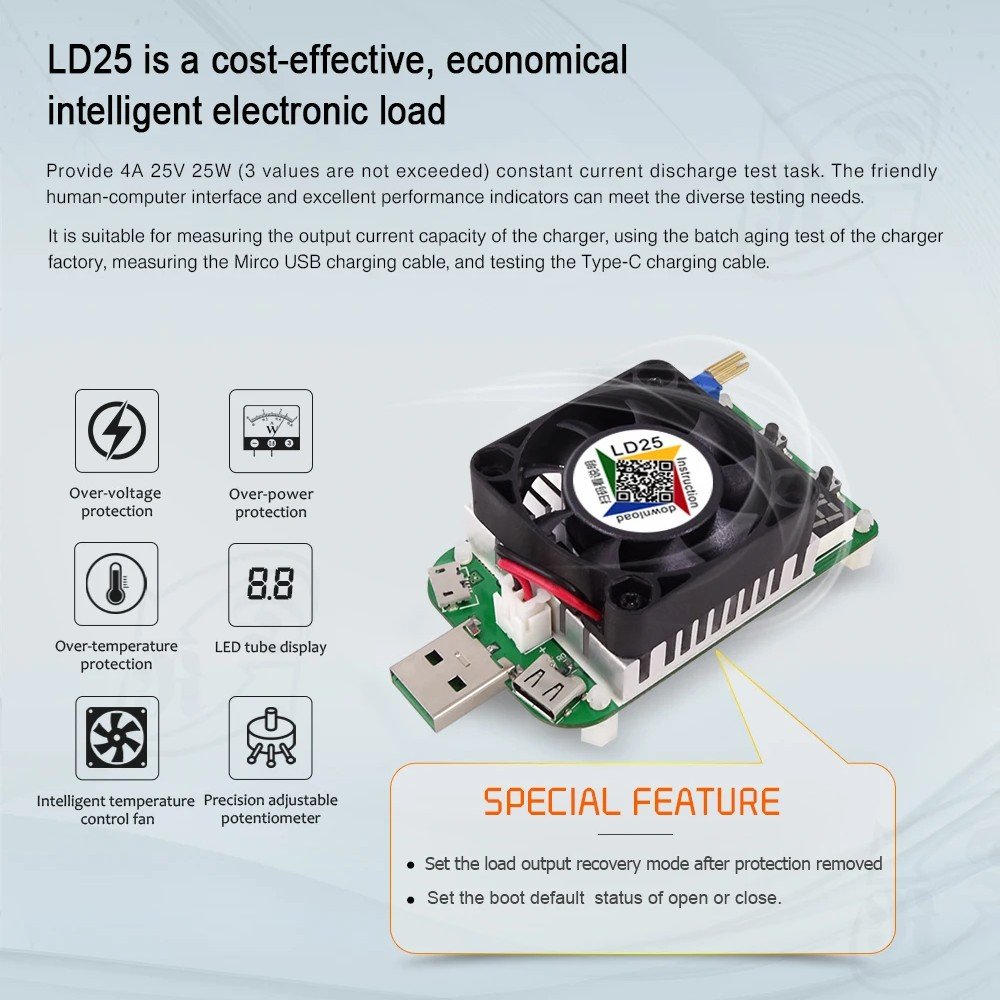

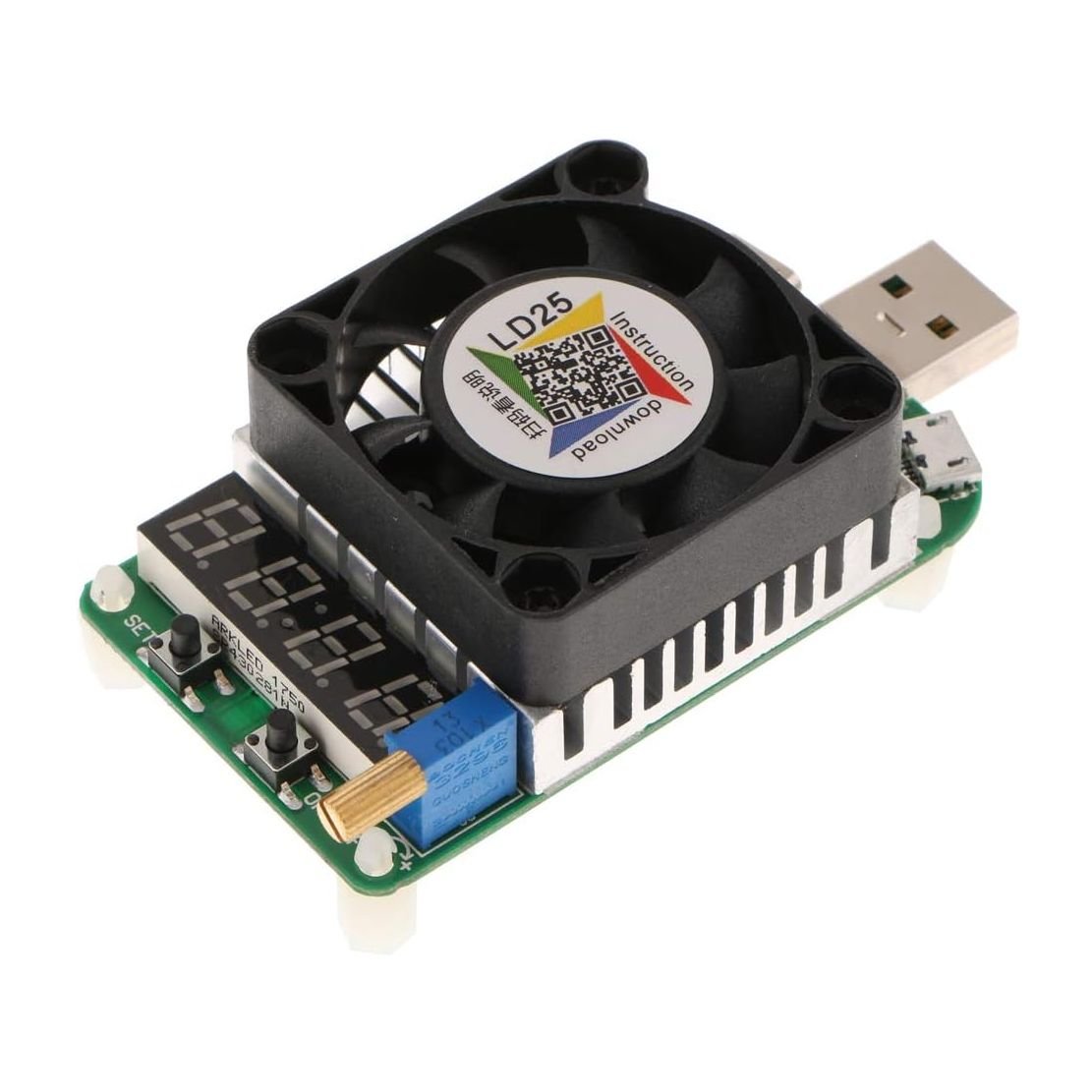

25W Electronic USB Load Adjustable Aging Tester Module

LD25 Electronic Load Tester Specifications

• Model: LD25
• Rated Operational Voltage: DC 4.0V – 25.0V
• Max Discharging Power: 25W
• Rated Operational Current: 0.25A – 4.00A
  • Note: Minimum constant current is 0.05A when the fan is not active.
• Constant Current Resolution: $\pm(1\% + 3 \text{ digits})$

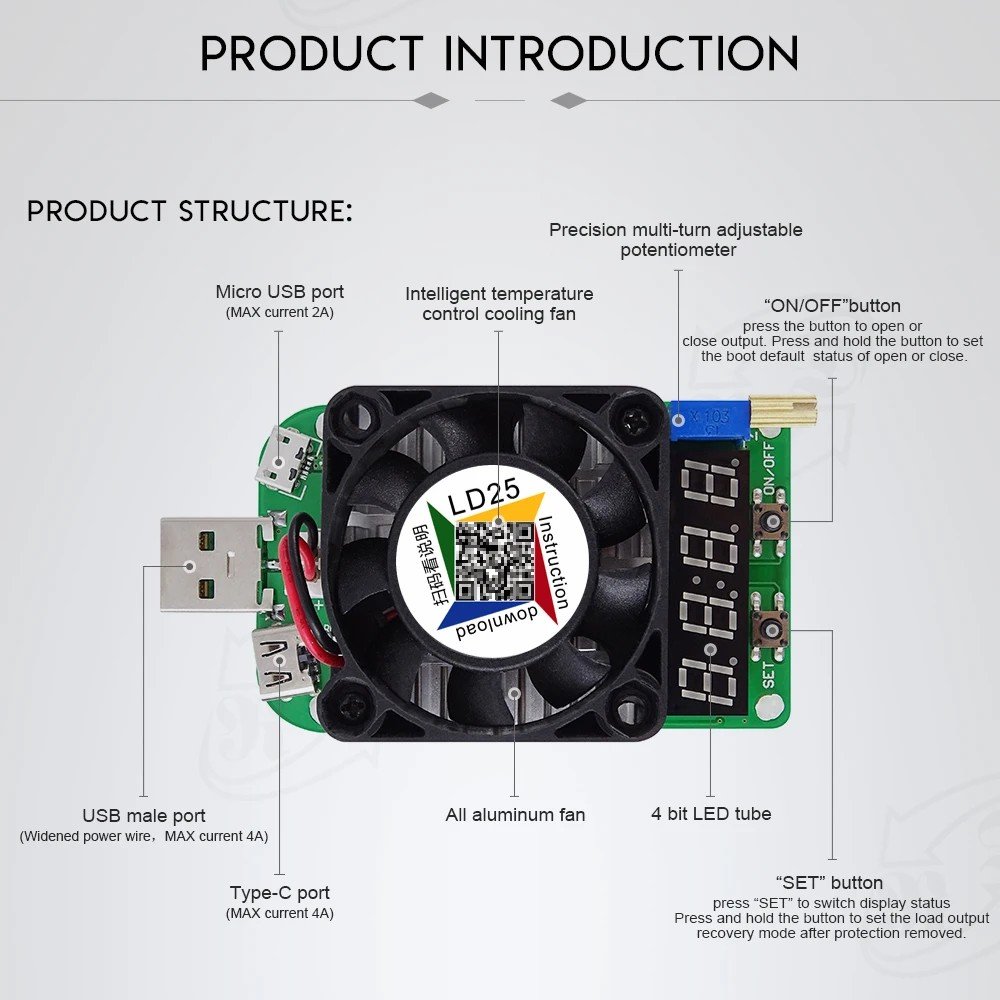

• Cooling System: Intelligent temperature-controlled fan + All-aluminum heatsink
  • Fan Speed: $5800 \pm 10\% \text{ RPM}$
• Adjustment Type: Precision multi-loop adjustable potentiometer

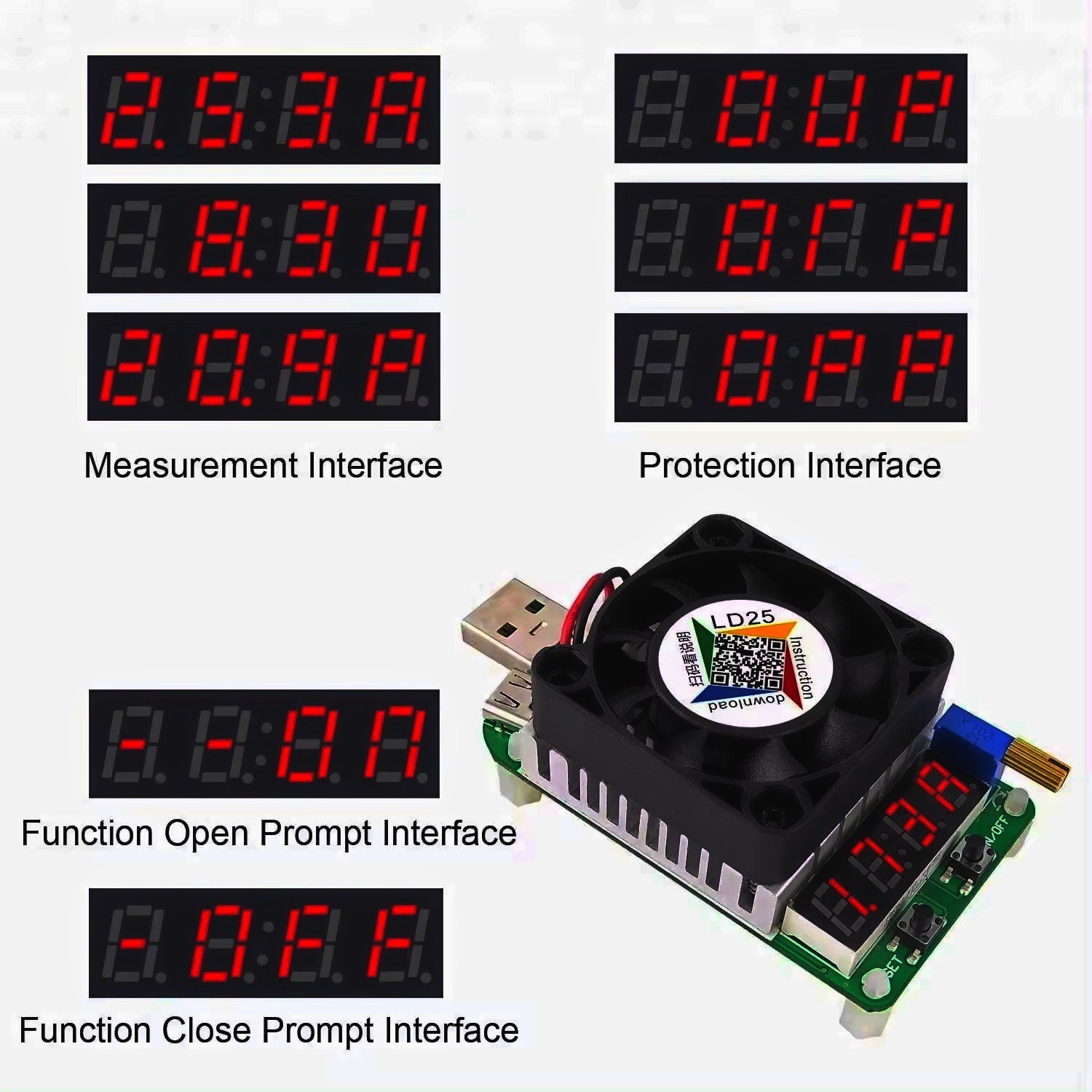

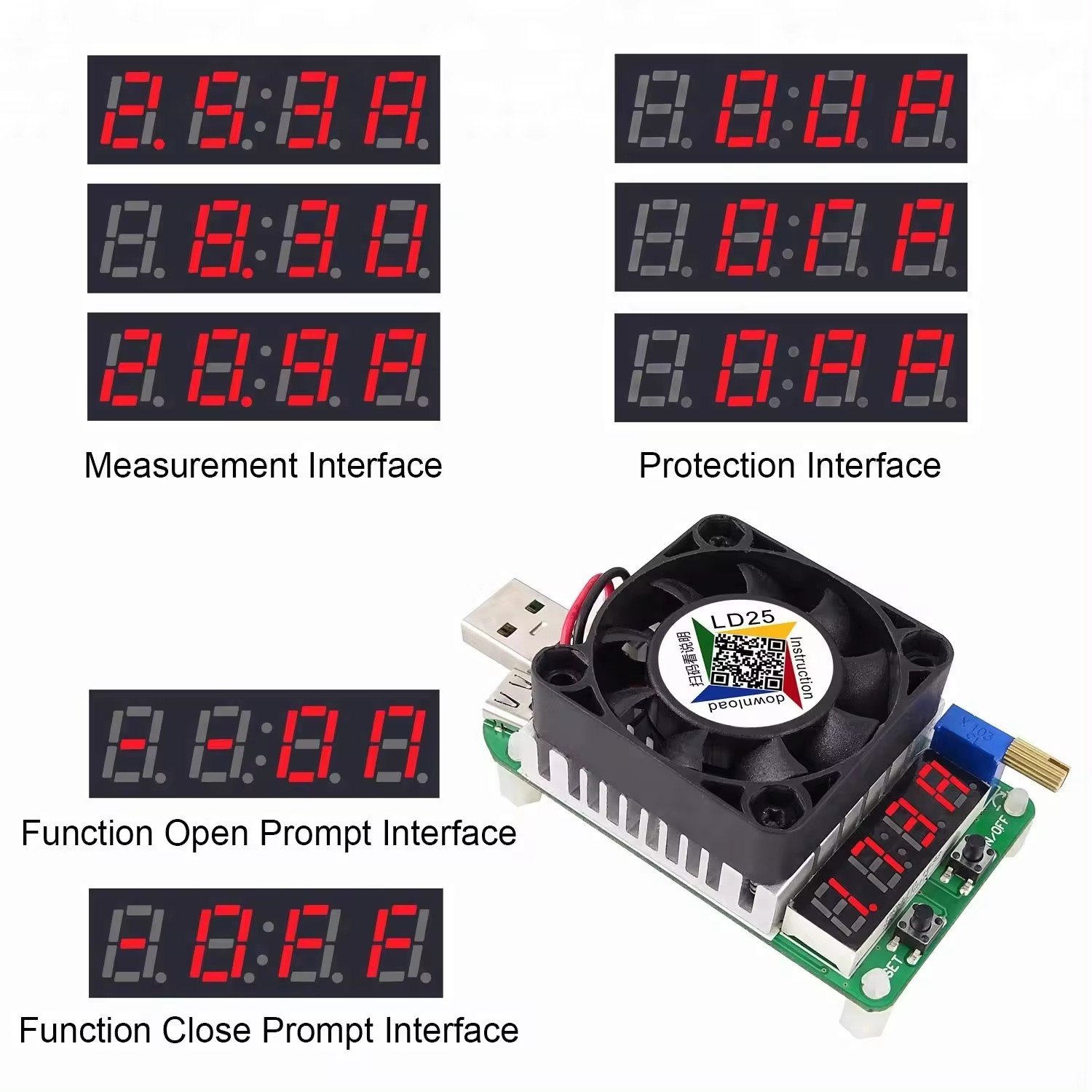

• Display: 4-bit LED digital tube
• Input Ports: USB (Standard), Micro USB, and USB Type-C
• Working Temperature: -10°C to 40°C
• Physical Specs: * Weight: 56.51g
  • Dimensions: 83.8 x 41.1 x 27.9mm
