KOWSI KWS 2303C USB Power Meter Voltage Tester 30V 12A
₹1,499.00 Incl. GSTFree Shipping
Only 1 left in stock
Kowsi 2303C USB Power Meter | Real-Time Voltage, Current & Power Monitor | Multi-Function USB Tester with Temperature, Timing & Curve Display

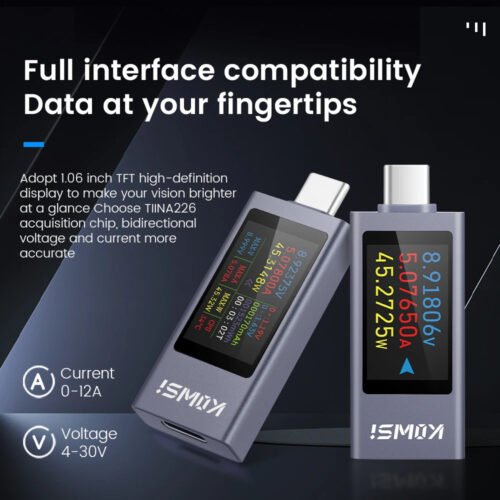

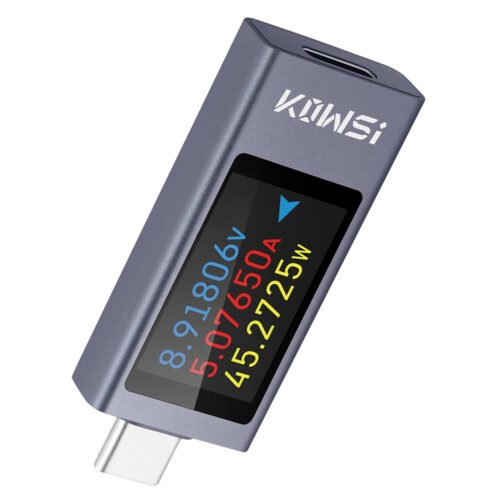

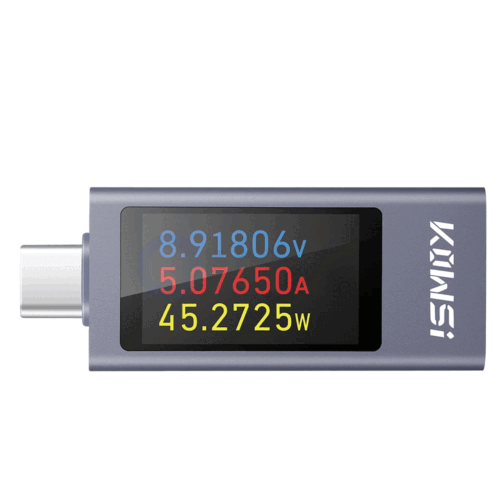

The KOWSI KWS-2303C USB Power Meter is a high-precision multi-function USB-C digital voltmeter and ammeter engineered to monitor real-time voltage, current, wattage, capacity, energy consumption, and device temperature. Equipped with a 1.06-inch color LCD screen, metal housing, and USB-C male-to-female pass-through ports, it supports up to 30V and 12A (360W max), making it ideal for testing fast chargers, power banks, laptops, smartphones, and DIY electronics.
Technical Specifications
| Parameter | Details |
| Product Type | USB-C Digital Power Meter / Voltage & Current Tester |
| Brand & Model | KOWSI KWS-2303C |
| Ports & Interface | 1× USB-C Male Input, 1× USB-C Female Output (USB 3.0) |
| Voltage Measurement Range | 4V – 30V DC |
| Current Measurement Range | 0A – 12A |
| Power Measurement Range | 0W – 360W |
| Capacity Accumulation Range | 0 – 66,666,666 mAh |
| Energy Accumulation Range | 0 – 9,999,999 Wh |
| Timing Range | 0 – 99 Hours |

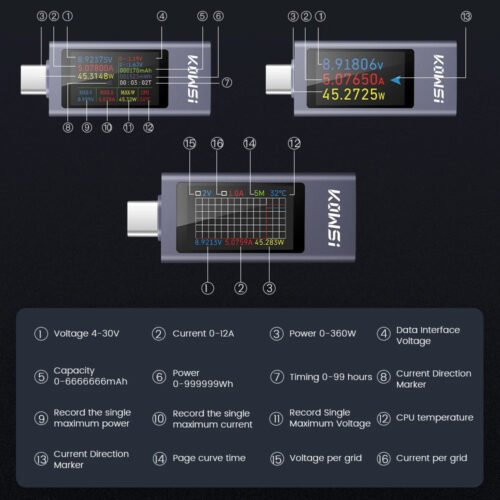

| Display | 1.06-inch Color LCD (Multi-page with real-time IV Curve Graphs) |
| Additional Monitoring | Peak Power/Current/Voltage Recording, CPU Temperature, Current Direction Marker |
| Screen Orientation | Dual Viewing Directions (Double-click button to rotate) |
| Body Material | Metal Casing |

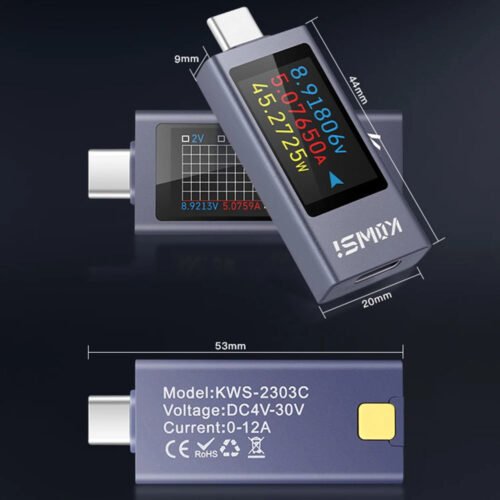

| Dimensions & Weight | 20 × 15 × 4 cm; 99 grams |
| Package Contents | 1× KOWSI KWS-2303C USB Power Meter |
Key Features

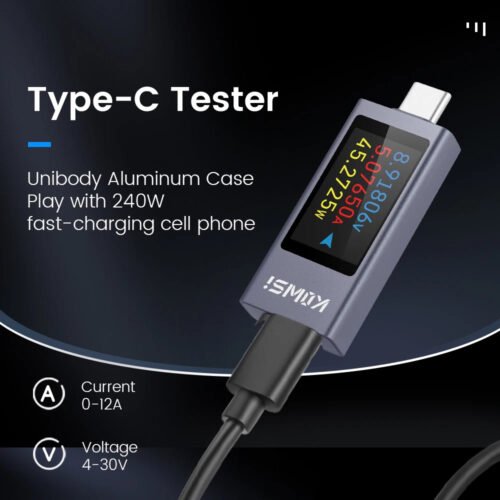

- High-Power 360W Measurement Capacity: Accurately measures voltage from 4V to 30V and current up to 12A (360W max), easily handling high-wattage USB-C PD laptop chargers and fast-charging cables.
- Multi-Page Color LCD with IV Curve Graphs: Switch effortlessly between multiple monitoring screens, including live voltage/current/power waveform graphs for detailed power delivery diagnostics.
- Peak Value & Bidirectional Current Tracking: Automatically logs maximum recorded power, voltage, and current, while visually indicating current flow direction for quick troubleshooting.
- Comprehensive Session & Thermal Logging: Tracks accumulated capacity (mAh), total energy (Wh), charging duration up to 99 hours, and live CPU temperature simultaneously.

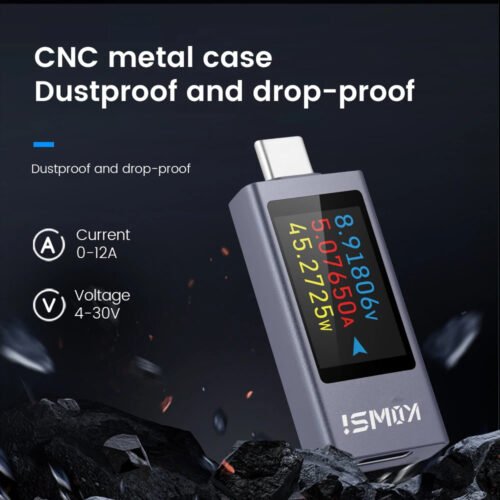

- 180° Rotatable Display & Metal Housing: Double-click the control button to flip the screen orientation for easy reading from any angle, housed inside a durable metal body.
Product Compatibility & Applications
Compatible Devices & Power Sources:
- USB-C PD Wall Chargers, GaN Adapters, & Car Chargers (up to 360W)
- Laptops, MacBooks, Tablets, & Fast-Charging Smartphones
- Portable Power Banks & Power Stations
- USB-C Data Cables & Charging Cords (for resistance and wattage verification)
- DIY Electronics, Embedded Boards, & DC Power Supplies
Common Use Cases:
- Verifying true charging wattage and fast-charge protocol output

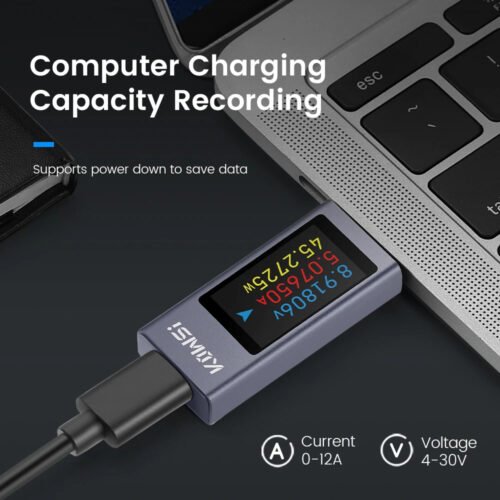

- Measuring real-world battery capacity (mAh / Wh) of power banks and devices
- Identifying faulty or high-resistance USB-C charging cables
- Continuous voltage and thermal monitoring during DIY hardware testing
Frequently Asked Questions
What is the maximum voltage and wattage supported by the KOWSI KWS-2303C?
The KWS-2303C supports voltages from 4V to 30V and currents up to 12A, allowing it to measure power loads up to 360W.
What connector ports does this USB power meter have?
It features one USB-C Male input plug and one USB-C Female output port with USB 3.0 interface support for direct inline testing between a charger/power source and a USB-C cable or device.
How do I rotate the screen if the meter is plugged in upside down?

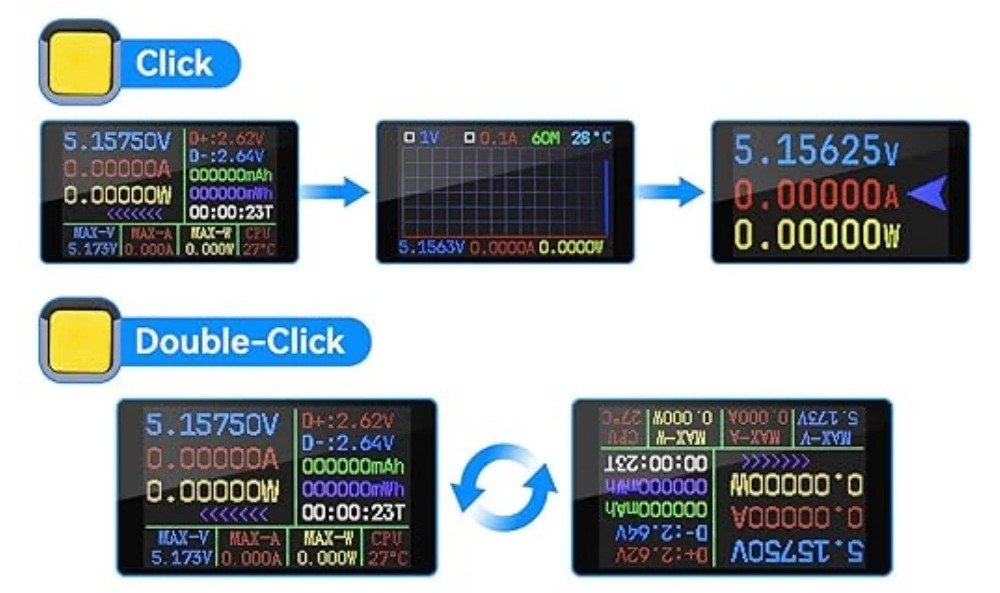

Simply double-click the physical button on the meter to flip the 1.06-inch color LCD display between dual viewing directions.
Does this tester show real-time charging graphs and peak values?
Yes. You can switch across multiple display pages to view live voltage, current, and power curve graphs, as well as automatically recorded peak voltage, current, and wattage readings.
Can it measure the actual capacity of a power bank or phone battery?
Yes. The meter accumulates total capacity up to 66,666,666 mAh and total energy up to 9,999,999 Wh over a timing window of up to 99 hours.
Tags: kowsi kws 2303c, usb c power meter, digital usb voltage tester, 360w usb tester, 30v 12a voltmeter ammeter, type c multimeter, usb c current tester, fast charger wattage tester, iv curve usb meter, efillooc usb tester
Warranty & Return Policy
- 7-Day Easy Return or Replacement (Terms & Conditions Apply)
- Product must be returned in original condition with intact protective packaging.
You found it on efillooc!
| Weight | 99 g |
|---|---|
| Dimensions | 20 × 15 × 4 cm |
| Material | Metal |
| Display | 1.06 inch color LCD |
| Interface | USB 3.0 |
| Ports | USB C Male 1x, USB C Female 1X |
| Model | KWS 2303C |
| Specification | Voltage 4-30V Current 0-12A Peak Time 0-99H IV Curve Graph |
| HSN |
