18W Electronic USB Load Adjustable Aging Tester Module for Testing Charger Power Bank

Original price was: ₹799.00.Current price is: ₹649.00. Incl. GSTFree Shipping

Input 4-13V DC. Current 0.1 – 3A. Aging 15W for 24 hours. 18W for 5 mins only.

In stock

🤖 Ask AI about this product
Wishlist
    Same Day Shipping for pre-paid orders placed before 11 AM

    Overview

    The 18W Electronic USB Load Adjustable Aging Tester Module is a compact, constant-current discharge testing tool designed for evaluating power adapters, power banks, and USB cables. Operating across a wide voltage range of 3.7V to 13V with manually adjustable current from 0.15A to 3A, this module features a dual-input setup (USB and Type-C) paired with an all-aluminum heat sink and an intelligent temperature-controlled fan for long-term load and factory aging tests.

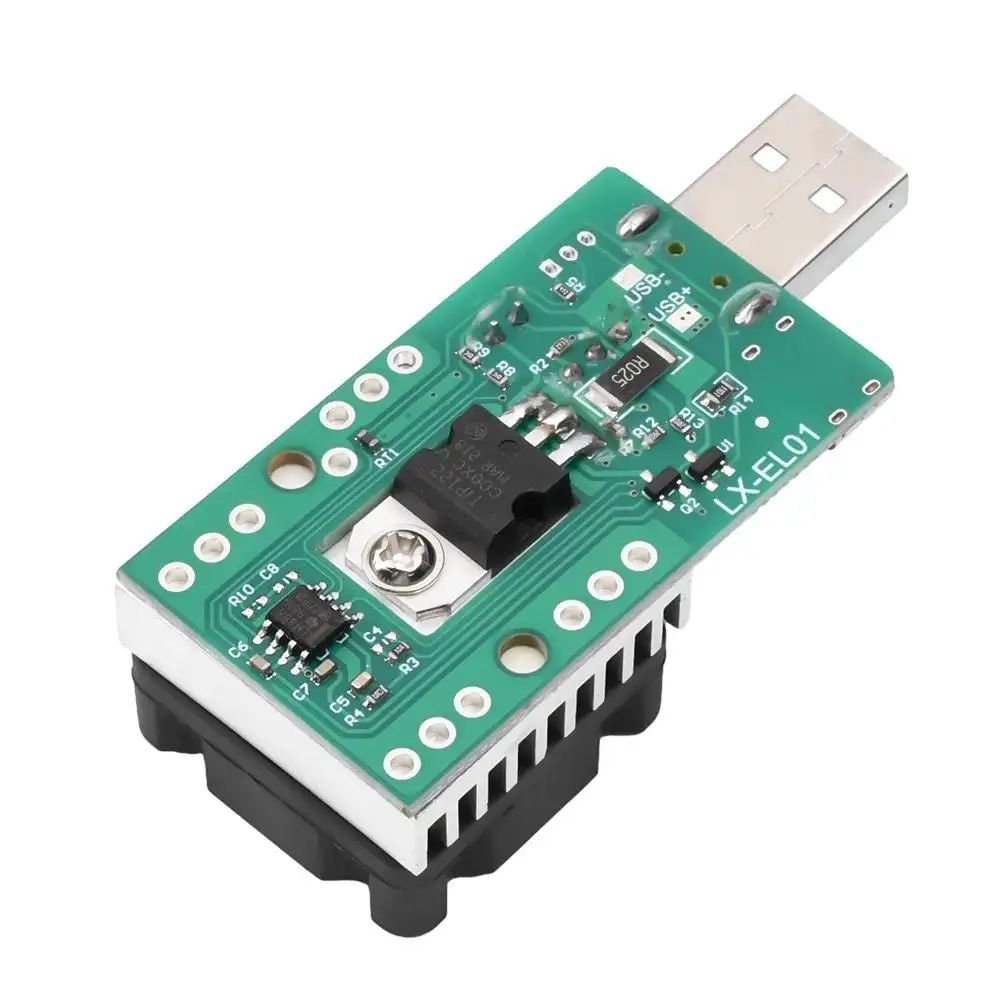

    efillooc 18W electronic usb load discharge tester

    Important Note: Do not connect a PD (Power Delivery) charger directly to the Type-C port. This module does not include a PD trigger function and must be paired with an external PD trigger board or tested using a standard USB to Type-C cable.

    Key Features

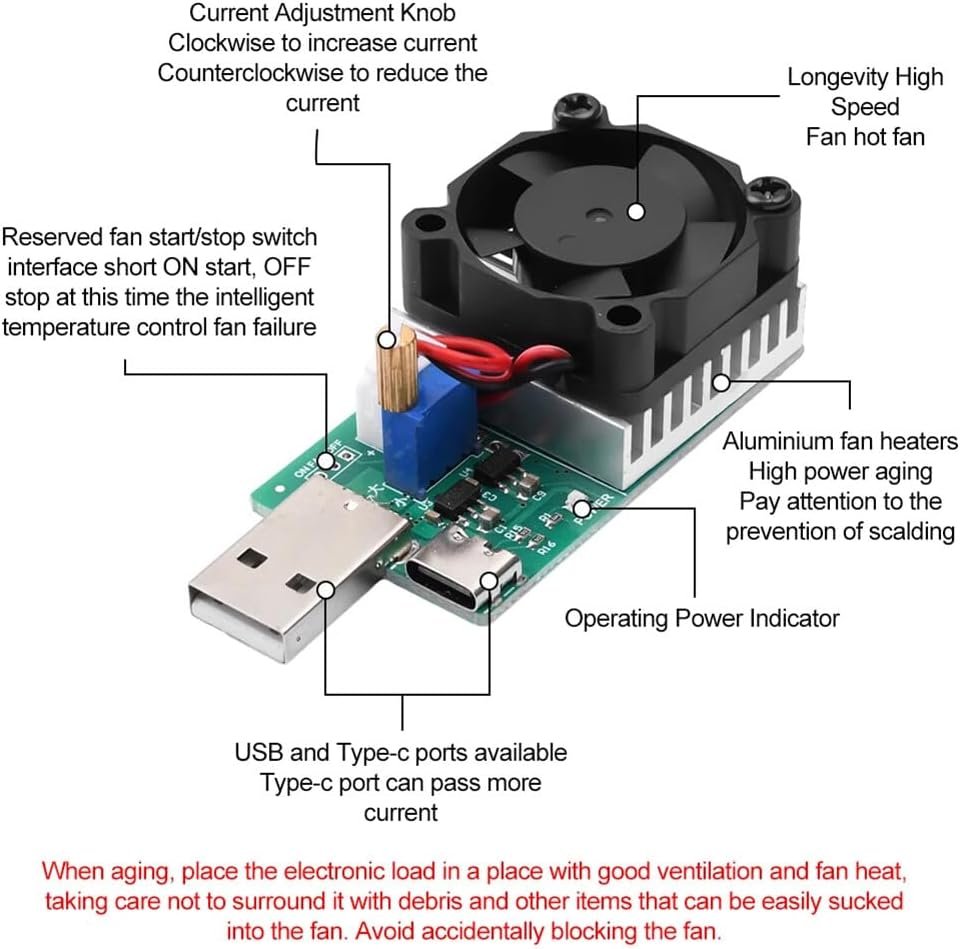

    • Wide Voltage & Adjustable Current: Supports 3.7V–13V input with a manual knob to adjust current smoothly between 0.15A and 3A (clockwise to increase, counterclockwise to decrease).

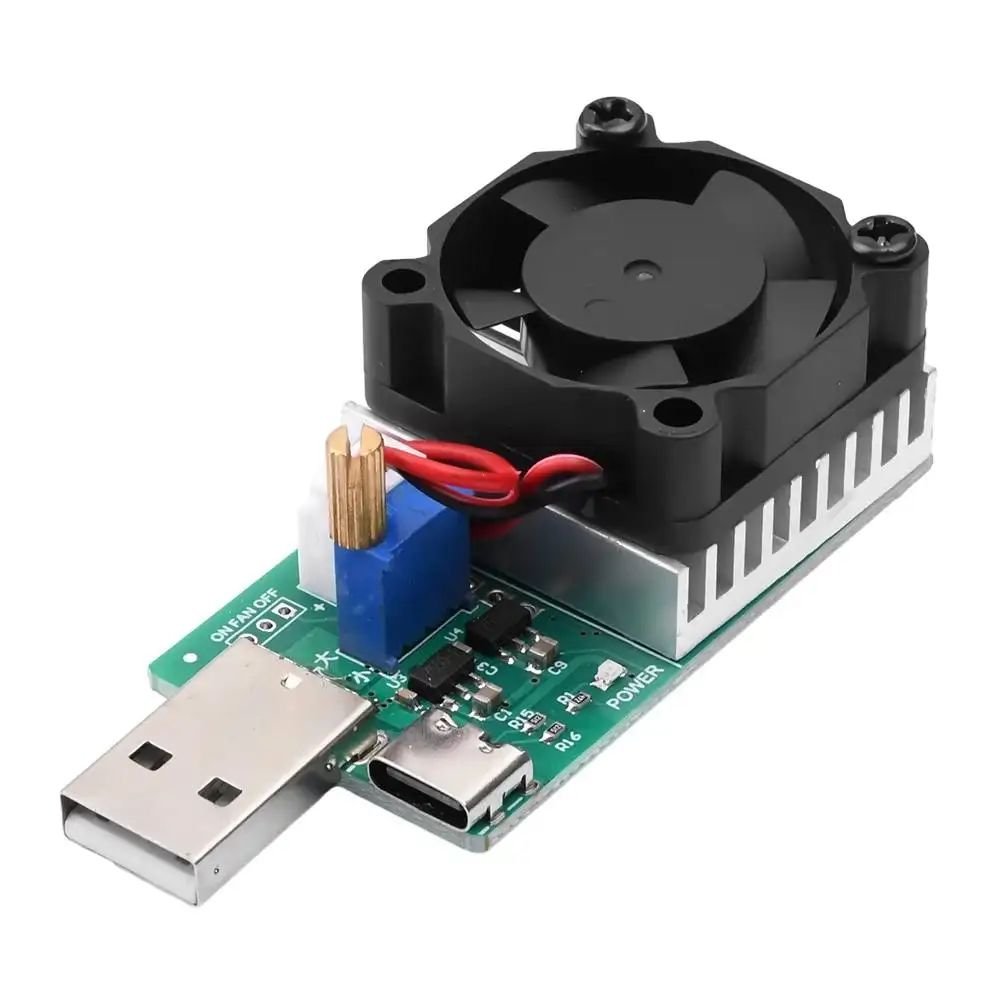

    • Dual Input Interfaces: Includes USB, Type-C, and manual solder pad connections for flexible test setups.

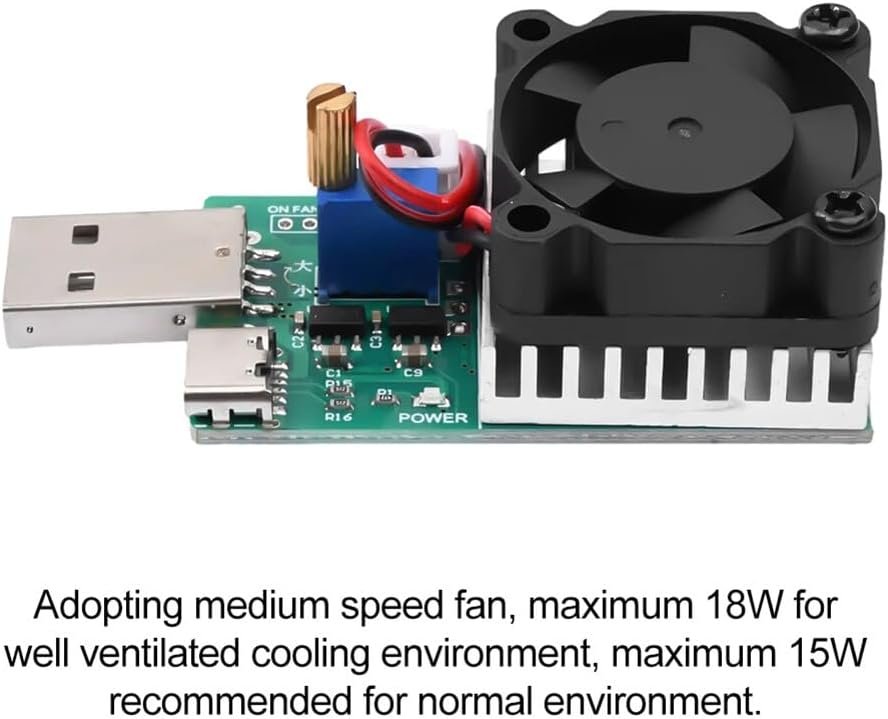

    • Intelligent Cooling System: Combines an all-aluminum heat sink with an integrated temperature-controlled fan for stable, long-duration discharge testing.
    • Multi-Use Testing: Perfect for burn-in testing, capacity verification, and factory aging tests of chargers, cables, and power sources.

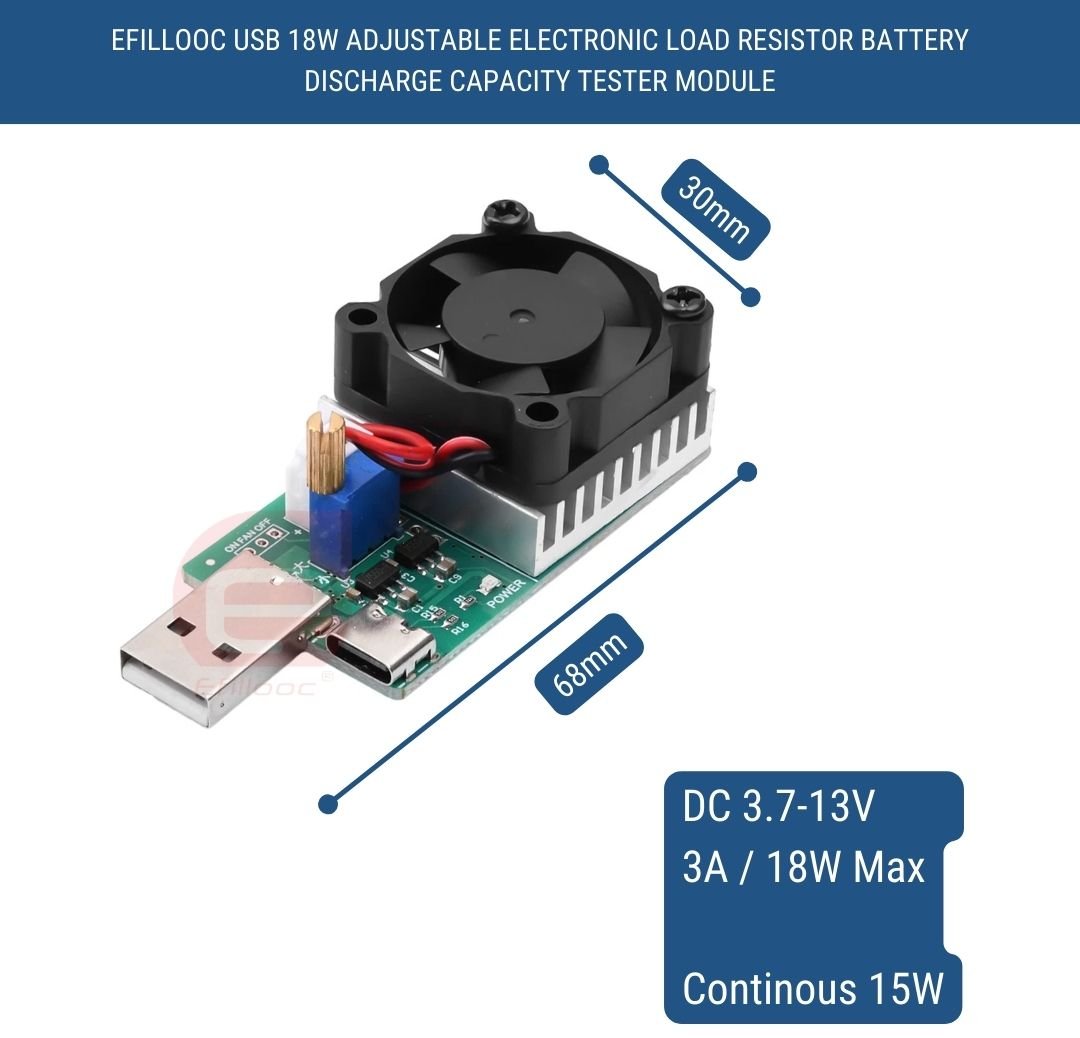

    • Compact Form Factor: Measures just 68 × 30 × 23 mm for easy portability on any workbench.

    Technical Specifications

    Feature / SpecificationDetails
    Product Name18W Electronic USB Load Adjustable Aging Tester Module
    Input Voltage Range3.7V – 13V
    Input Current Range0.15A – 3A (Adjustable via knob)
    Current AdjustmentManual Knob (Clockwise: Increase / Counterclockwise: Decrease)
    Input InterfacesStandard USB / Type-C / Manual Solder Pads
    Maximum Power Rating18W (Optional 22.5W models)
    Cooling MechanismAll-Aluminum Heat Sink + Intelligent Temp-Controlled Fan
    Discharge ModeStable Constant Current (0.15A – 3A)
    Dimensions (L × W × H)68 × 30 × 23 mm
    Package Includes1 × Electronic Load Module

    Frequently Asked Questions (Q&A)

    1. Can I plug a USB-C Power Delivery (PD) charger directly into the Type-C port?

    No. The Type-C port on this module does not have a built-in PD trigger. To test a PD charger, you must connect an external PD trigger board first or use a standard USB-to-Type-C cable.

    2. How do I adjust the load current on the module?

    The current is controlled manually using the built-in adjustment knob. Turning the knob clockwise increases the load current, while turning it counterclockwise decreases it, spanning from 0.15A up to 3A.

    3. What input interfaces are available on the module?

    The module offers three connection options: a standard USB male interface, a Type-C female port, and dedicated manual solder pads for custom wire connections.

    4. How does the cooling fan operate?

    The module is equipped with an intelligent temperature-controlled fan and an all-aluminum heat sink. The fan activates automatically based on thermal load to maintain safe operating temperatures during continuous aging tests.

    5. What range of chargers can be tested with this load board?

    It can test any DC power source providing between 3.7V and 13V up to an 18W power limit, making it ideal for standard 5V, 9V, and 12V USB power adapters, power banks, and battery packs.

    Would you like me to generate 8 comma-separated tags/hashtags, create a styled HTML description box, or draft WooCommerce bullet points for this product?

    Warranty & Return Policy

    • 7-Day Easy Return or Replacement (Terms & Conditions Apply)
    • Product must be returned in original condition with intact protective packaging.

    You found it on efillooc!

    Weight140 g
    Dimensions20 × 10 × 5 cm
    Input

    5-13V DC

    HSN

    Power

    15W Continuous, 18W for 5 Mins

    Port

    USB A, Micro, USB C
