FNIRSI FNAC-28 2-IN-1 Type-C USB Tester Digital Voltmeter Ammeter Power Bank Charger Measure
Original price was: ₹3,099.00.₹2,699.00Current price is: ₹2,699.00. Incl. GST | FREE Shipping
You save

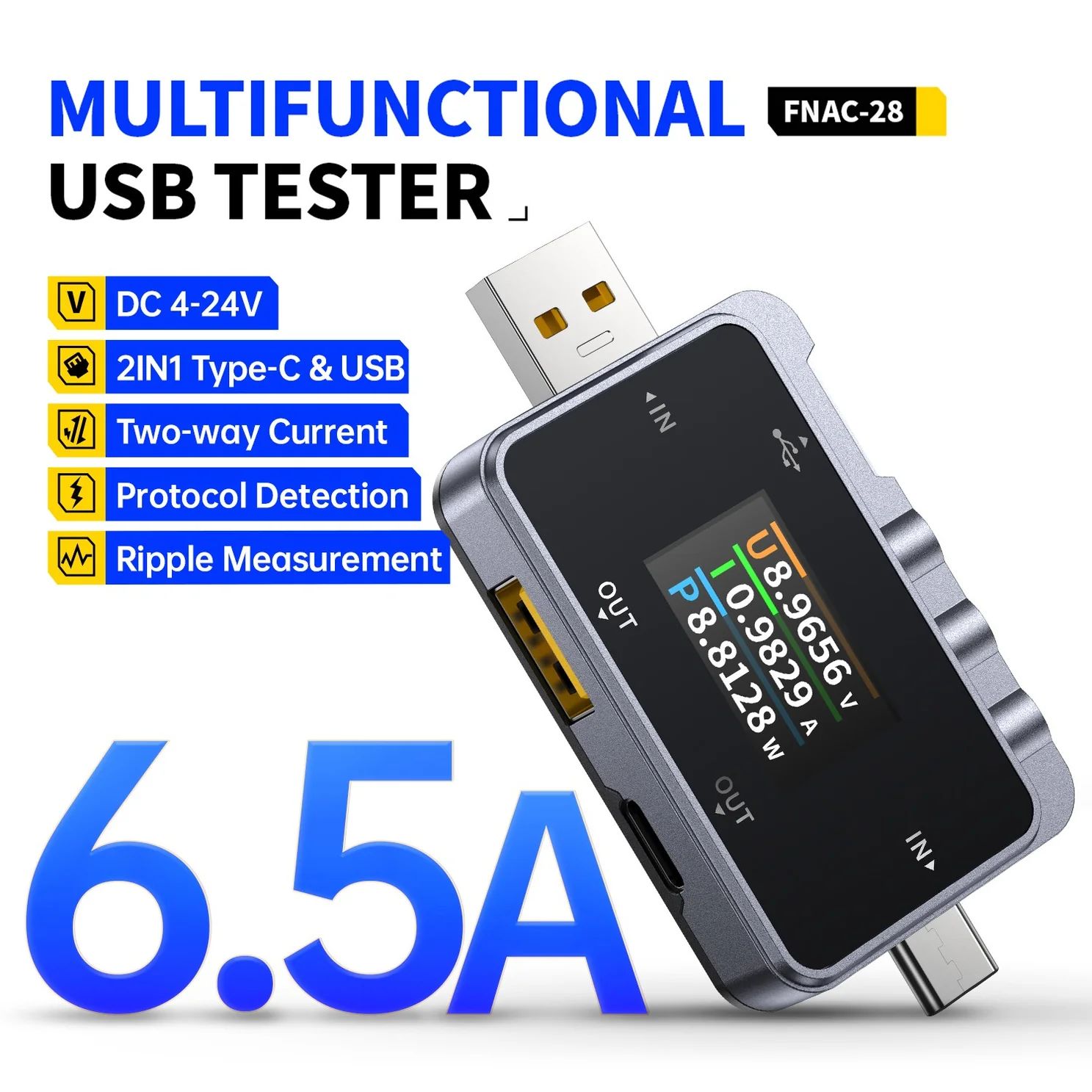

The Fnirsi FNAC-28 USB Tester is a multifunctional USB voltage and current meter, as well as a quick charge trigger device for mobile communication terminals.
Features of Fnirsi Fnac-28

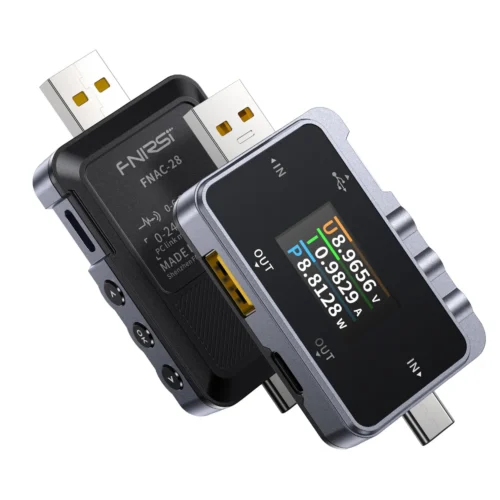

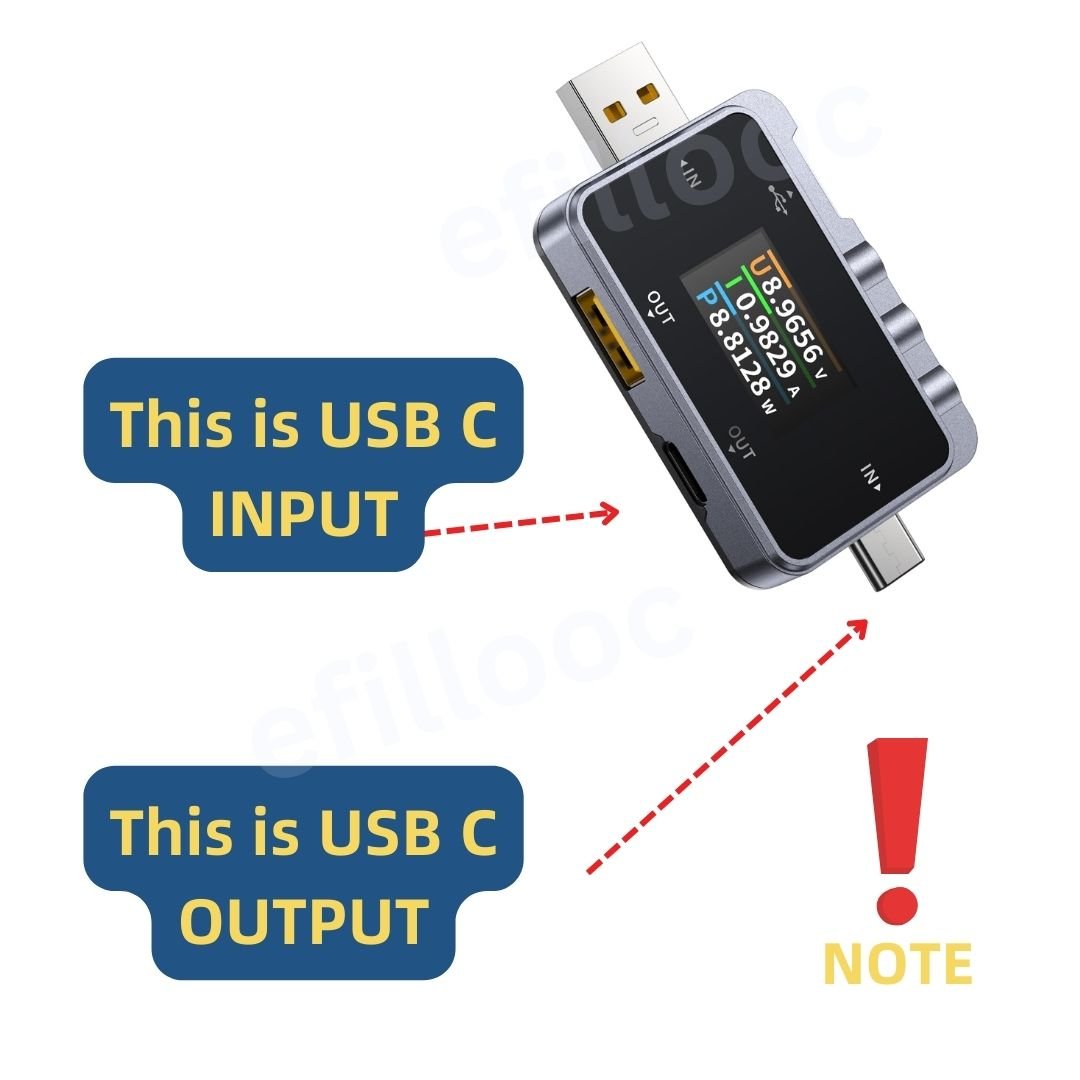

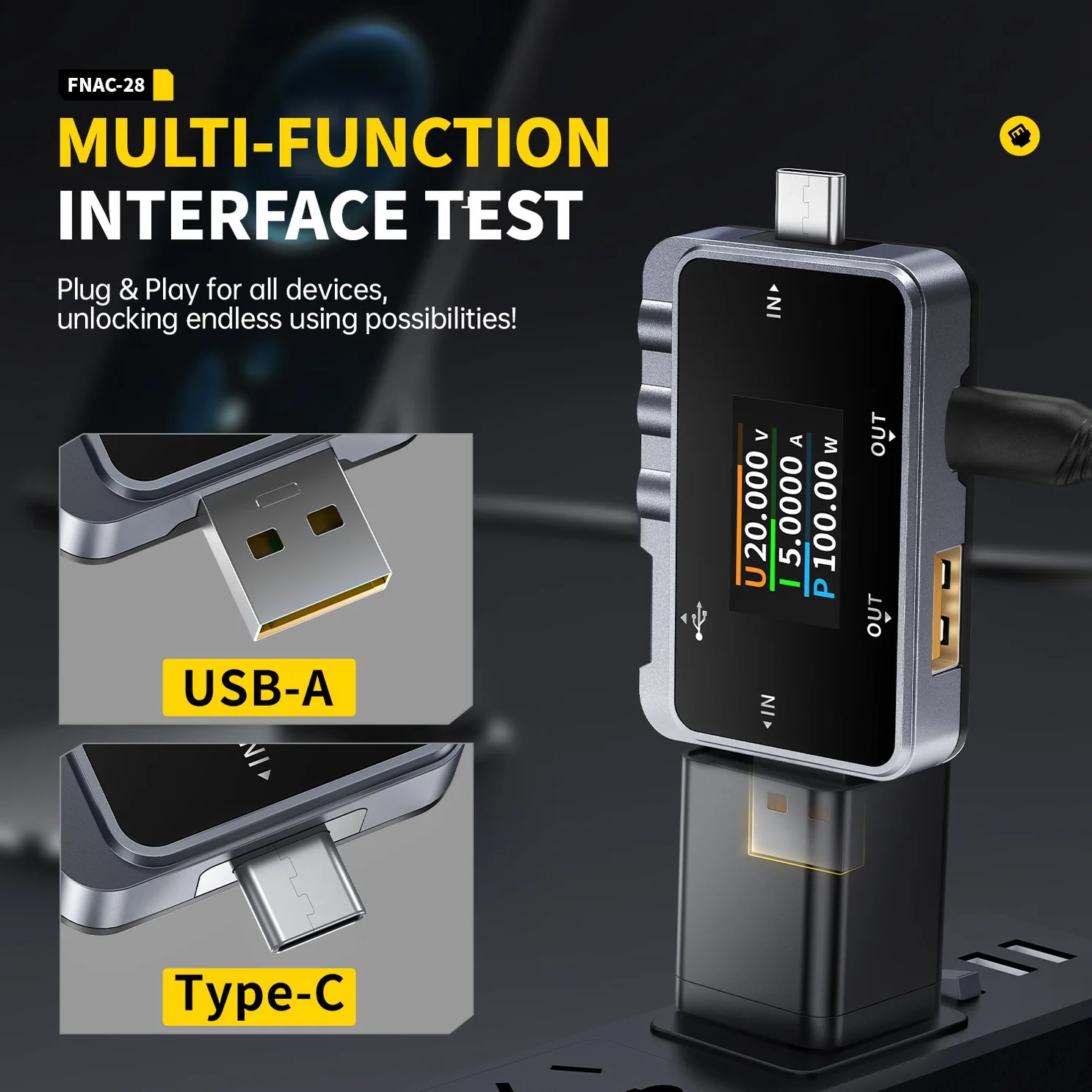

- It features a full-color, ultra-wide viewing angle TFT LCD display and integrates multiple interfaces, including USB-A and Type-C male and female connectors, ensuring broad compatibility.
- Utilizing an external 16-bit ADC chip, it offers high measurement accuracy.

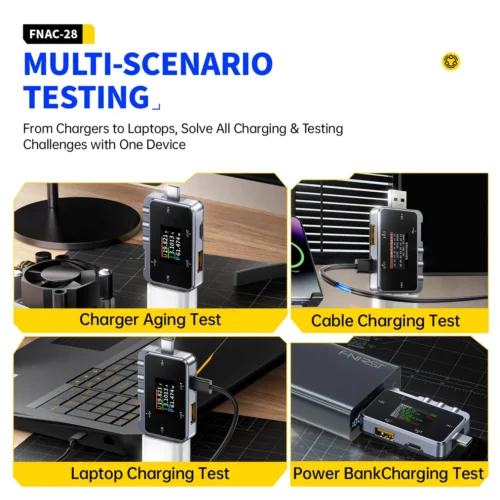

- This device can measure the power supply or consumption of USB interfaces, phone chargers, USB drives, and other products.
- It can also measure phone charging power, and the input and output conditions of power banks, and perform quick charge protocol testing for chargers.

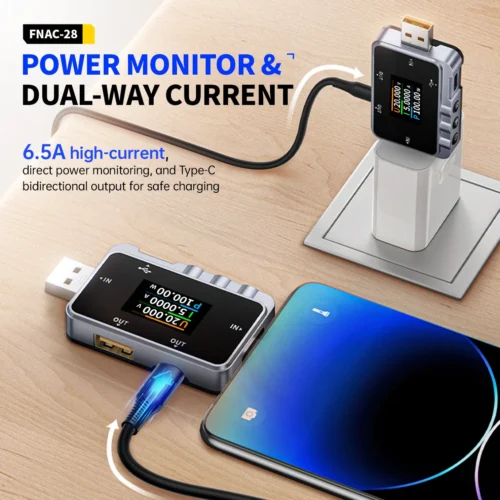

✦ Bidirectional high current detection: FNIRSI FNAC-28 USB tester supports 6.5 A bidirectional current detection, USB-A/Type-C interface compatible, accurately measures power supply and power consumption, and provides users with detailed data support.
✦ High-precision measurement chip: The USB power meter uses an external 16-bit ADC to ensure accurate measurement of voltage and current data, effectively reducing the error range and improving the professionalism of the test.

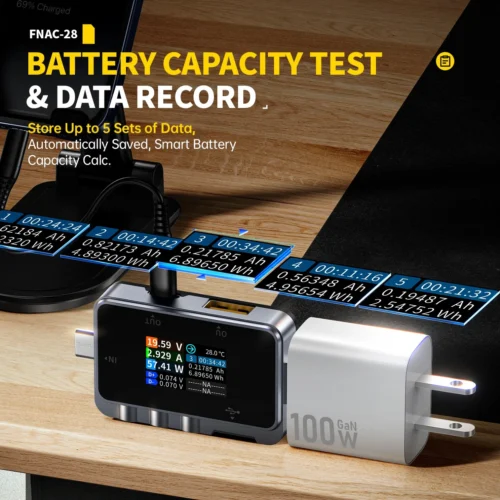

✦ Multi -functional data analysis: USB cable tester supports battery capacity testing, stores 5 sets of data; supports curve display, waveform pause, and the time base range can be adjusted, observed the data carefully.

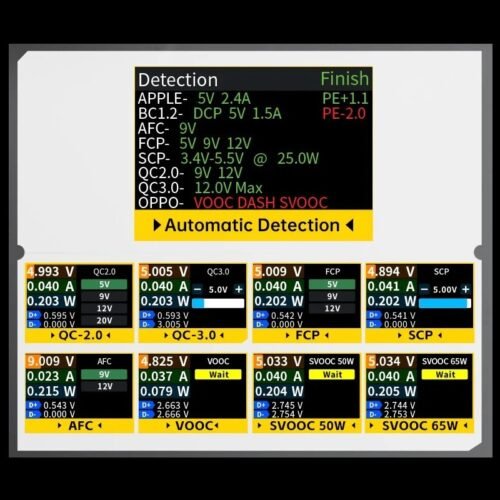

✦ Fast charging protocol support: Voltage tester supports QC2.0/QC3.0, FCP/SCP, AFC, VOOC/WARP, SVOOC 1.0/SVOOC2.0 triggering. All the above protocols support automatic detection to meet various testing needs.

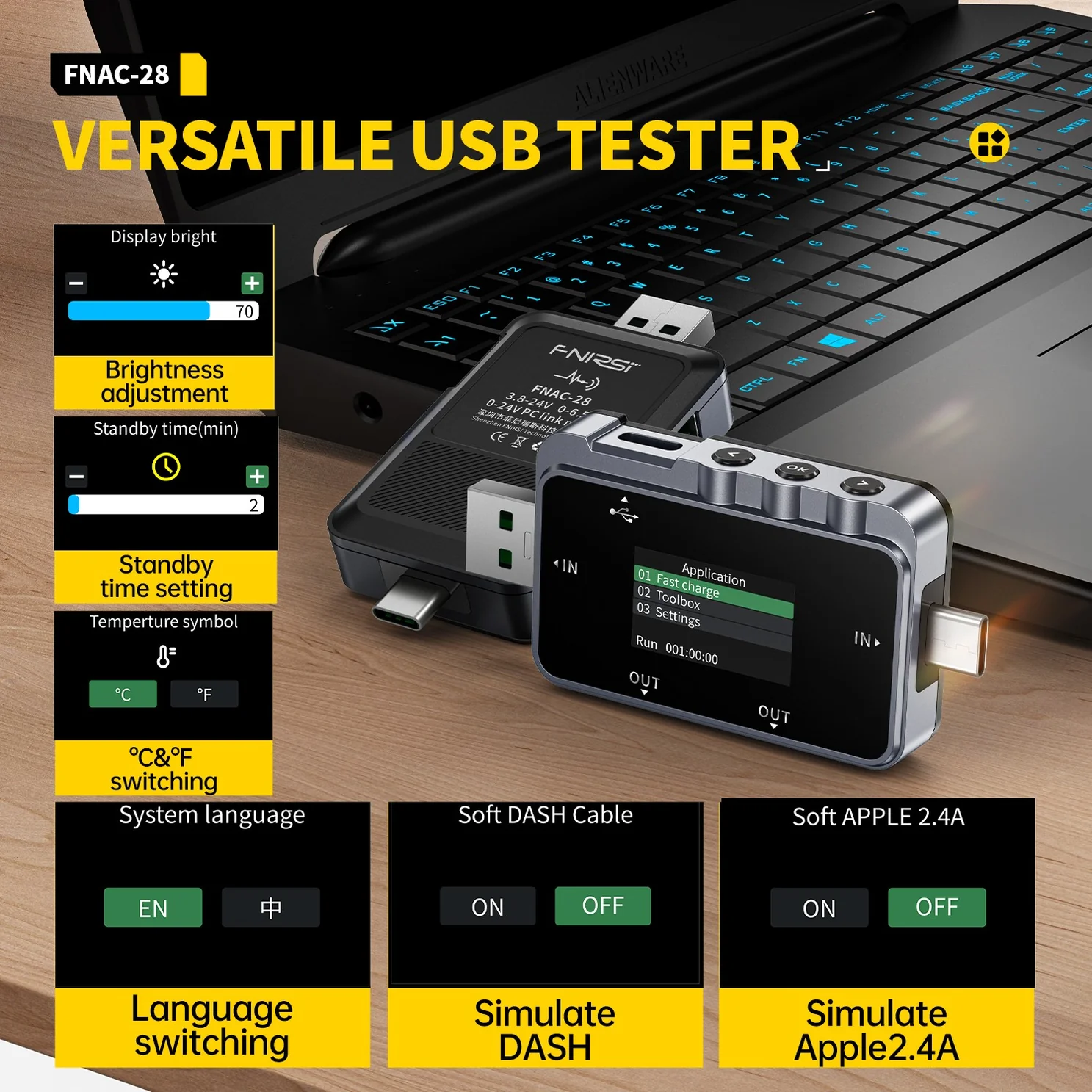

✦ Cable detection and simulation: The USB detector uses the differential pressure method to measure the internal resistance of the cable, simulate APPLE 2.4 A, DASH fast charging, read DASH cable information.
FNIRSI FNAC-28 Specifications
Specification | Details |
---|---|
Brand | FNIRSI |
Model | FNAC-28 |
Screen | 1.06 inch color screen |
Monitored Voltage | 4~24V |
Monitored Current | 0~6.5A |
Monitored Power | 0~156W |
Protocol Detection | ①QC2.0: 5V/9V/12V/20V ② QC3.0: 3.4-20V ③ FCP: 9V/12V/20V ④ SCP: 5.5-6.0V ⑤ AFC: 9V/12V ⑥ VOOC/WARP: 20V ⑦ SVOOC 1.0: Support ⑧ SVOOC 2.0: Support |
Cable Resistance | Support |
Detect DASH Cable | Support |
Soft DASH Cable | Support |
Soft APPLE 2.4A | Support |
Brightness Adjustment | Support |
Standby Time Setting | Support |
Temperature Symbol | ℃ and ℉ switch |
Language | Chinese and English |
Firmware Upgrade | Support |
Dimensions | 73×36×12mm |
Weight | 21g |
You found it on efillooc!
Weight | 99 g |
---|---|
Dimensions | 13 × 10 × 5 cm |
Model | FNAC-28 |
Display | 1.06 inch |
Monitored Voltage | 4-24V |
Monitored Current | 0-6.5A |
Dimension | 73x36x12mm |
Item Weight | 21g |
