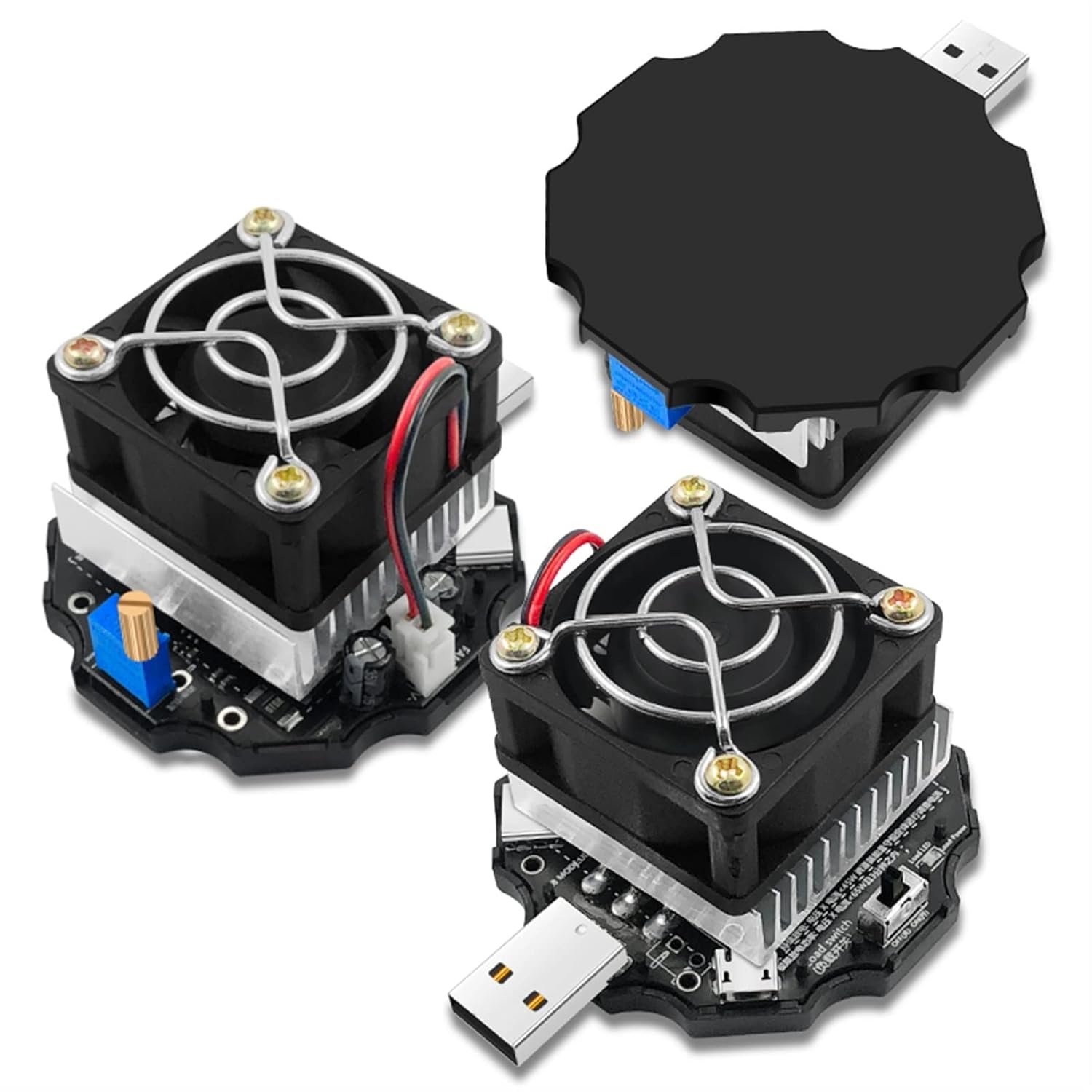

65W Electronic USB Load Adjustable Aging Tester Module for Testing Charger Power Bank
₹1,299.00 Incl. GST | FREE Shipping
You save
Input 5-24V DC. Current 0.1 – 4.8A.
Aging 45W for 24 hours. 65W for 3 mins only.
In stock
SAME DAY shipping (pre-paid), order before 12PM

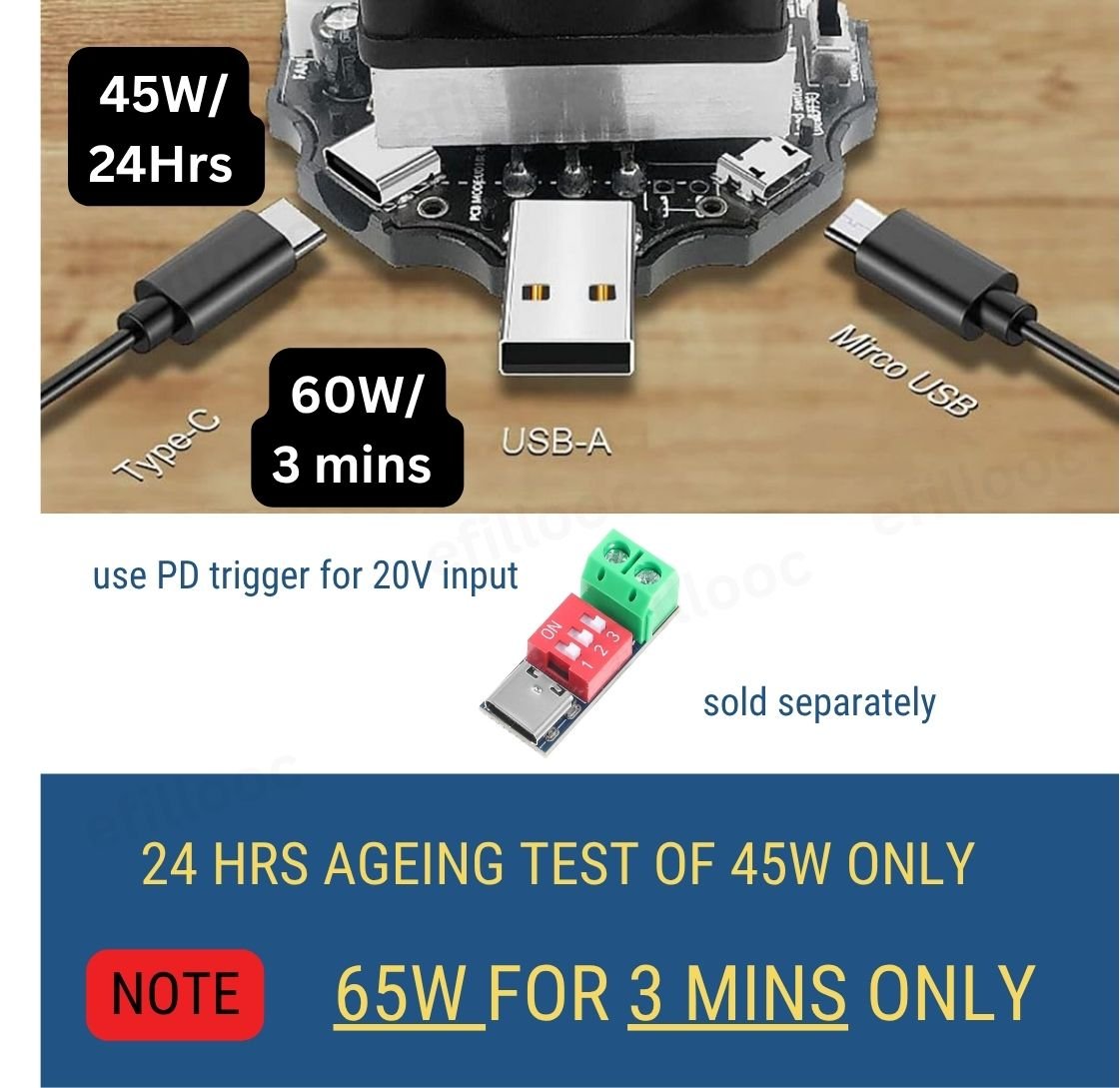

Attention: PD charger should not be connected to this type-c interface for testing, as this USB load does not have PD trigger function and needs to be combined with PD trigger to be tested
Alternatively, a USB to TYPE-C data cable can be used for testing!

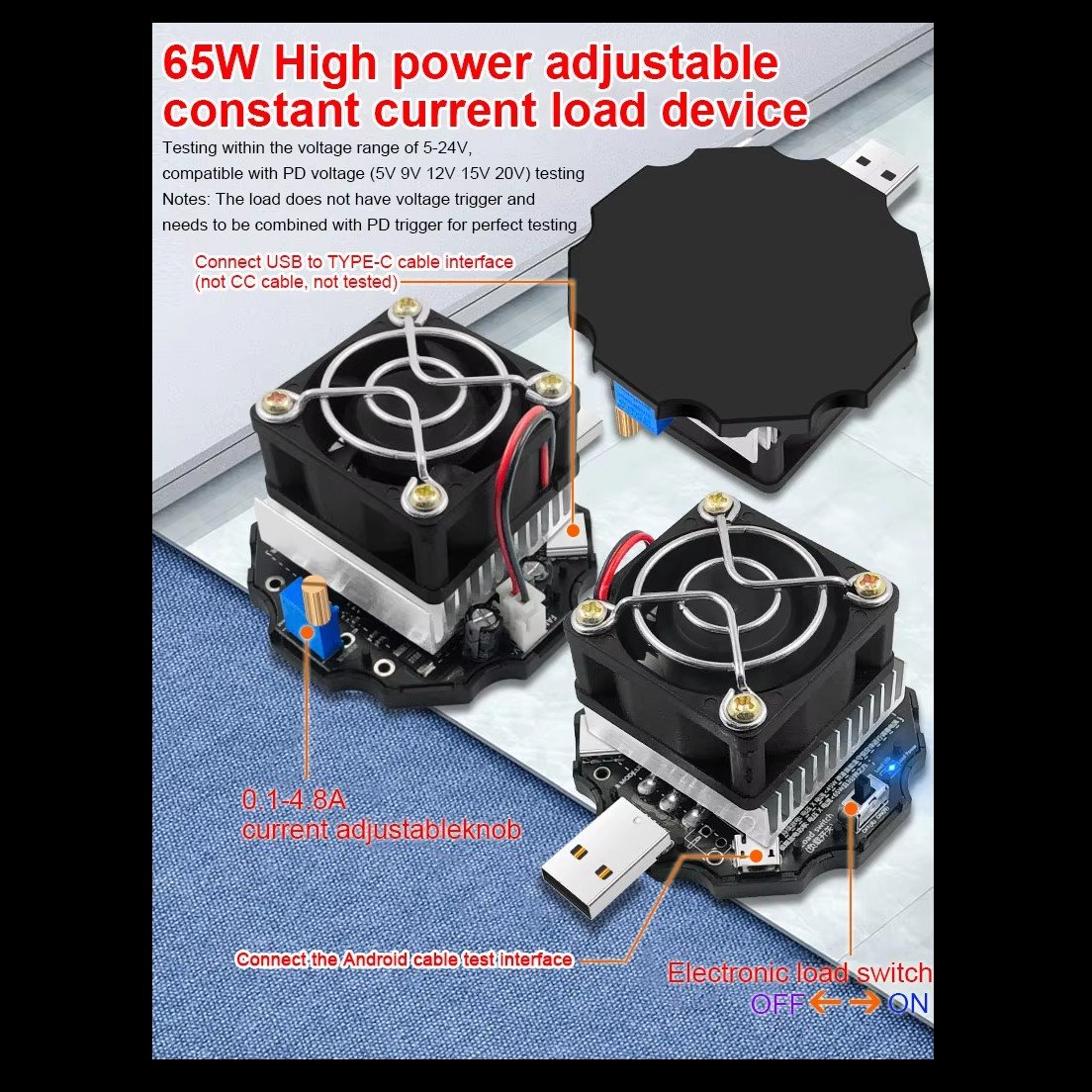

65W adjustable constant current load parameters:
Input interface: USB-A male input / Android Micro USB female input / Type-C female input

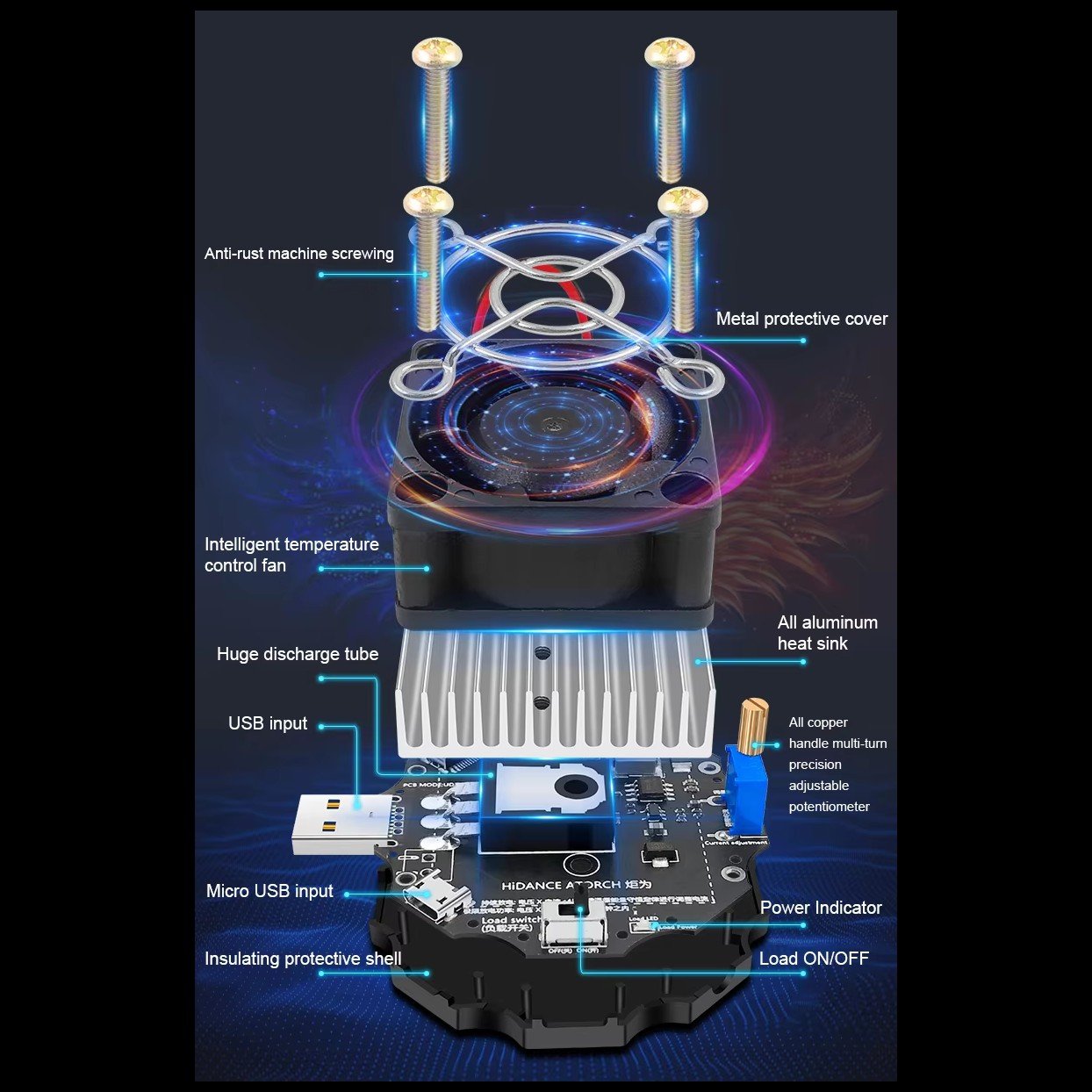

Discharge tube type: IRFP260N (50A/200V)

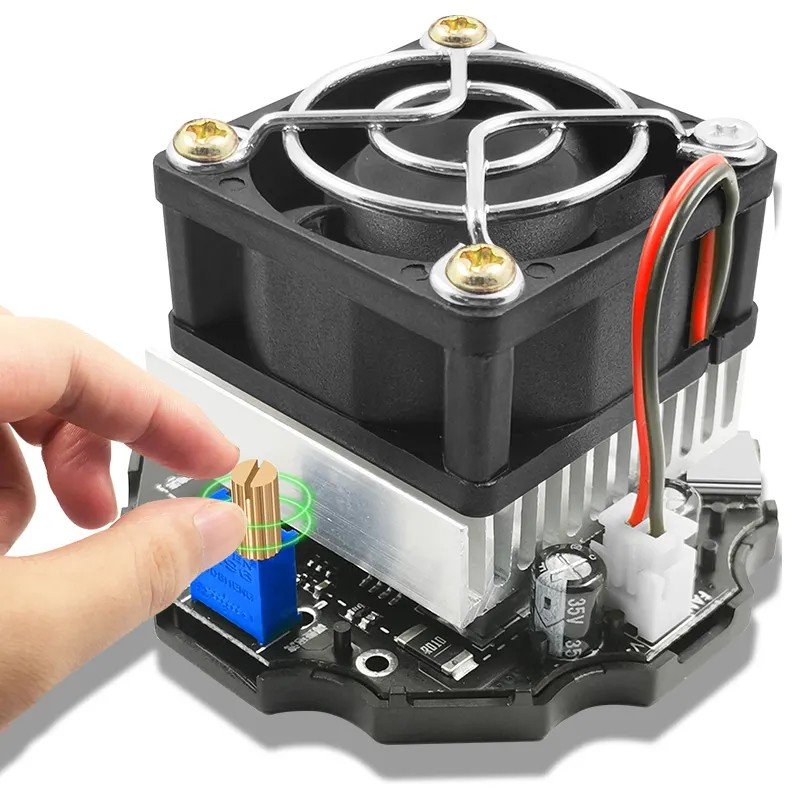

Adjust potentiometer: precision multi-turn adjustable potentiometer
Cooling method: intelligent temperature control fan + all aluminum heat sink
Input voltage: DC5~24.0V
Adjustable current: 0.1~4.8A (maximum current is controlled within 65W according to the energy conservation law of the input voltage, according to P=UI calculation principle)
Constant current accuracy: ±2%
Current adjustment method: fine adjustment method using multi-turn resistance
Rated aging power: 45W (sustainable); ultimate aging power: 65W (within 3 minutes in a short time)
Fan control mode: temperature intelligent control (the higher the power, the higher the temperature, the faster the fan automatically increases the speed)
Maximum fan speed: MAX12000±10RPM (large wind speed super high speed fan with adjustable speed)

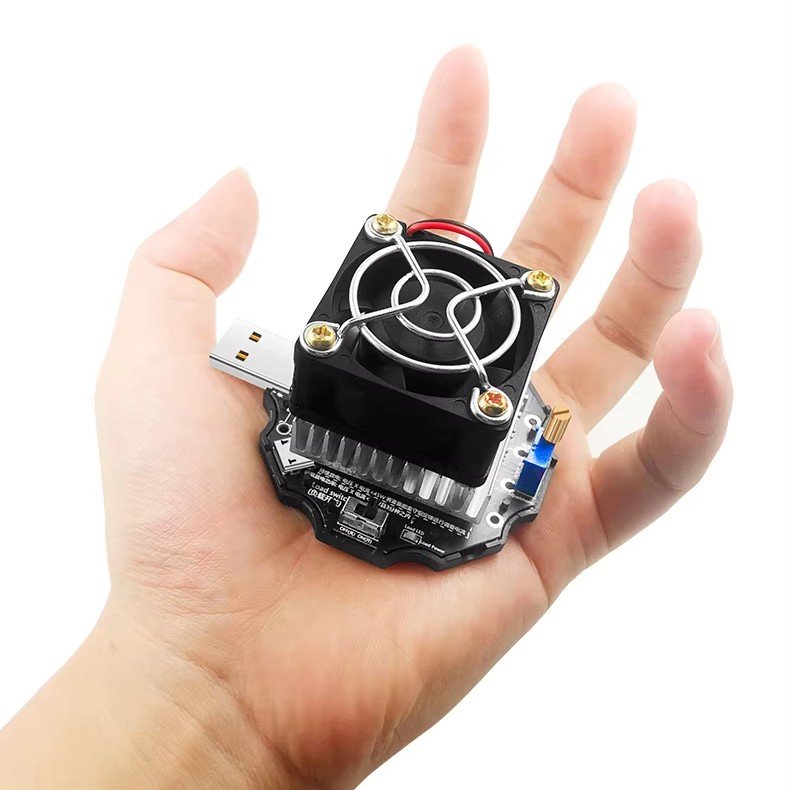

Product size: 77 x 63 x 45mm
Product Weight : 85g
Self-consumption current: <0.02A
Working temperature: -10~+60 degrees Celsius -10~+60°C
Working humidity: 10~80 (no doubt exposed) 10~80 (no doubt)
Working pressure: 80~106kPa
Use this USB load tester for checking capacity of Chargers Power Bank and adapters. Connect the Lithium battery with BMS and check discharge capacity with this USB load.
You found it on efillooc!
Weight | 140 g |
---|---|
Dimensions | 20 × 10 × 5 cm |
Input | 5-24V DC |
Power | 45W Continuous, 65W for 3 Mins |
Port | USB A, Micro, USB C |
