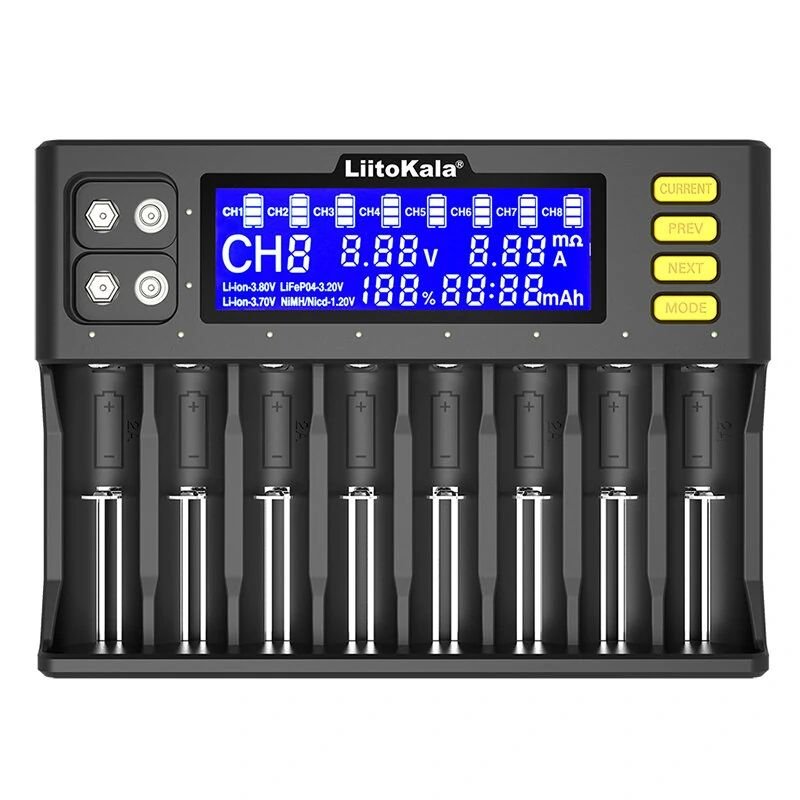

Liitokala Lii-S8 8 Channel 2A 9V Battery Charger AAA AA 18650 26650 21700 LCD Display

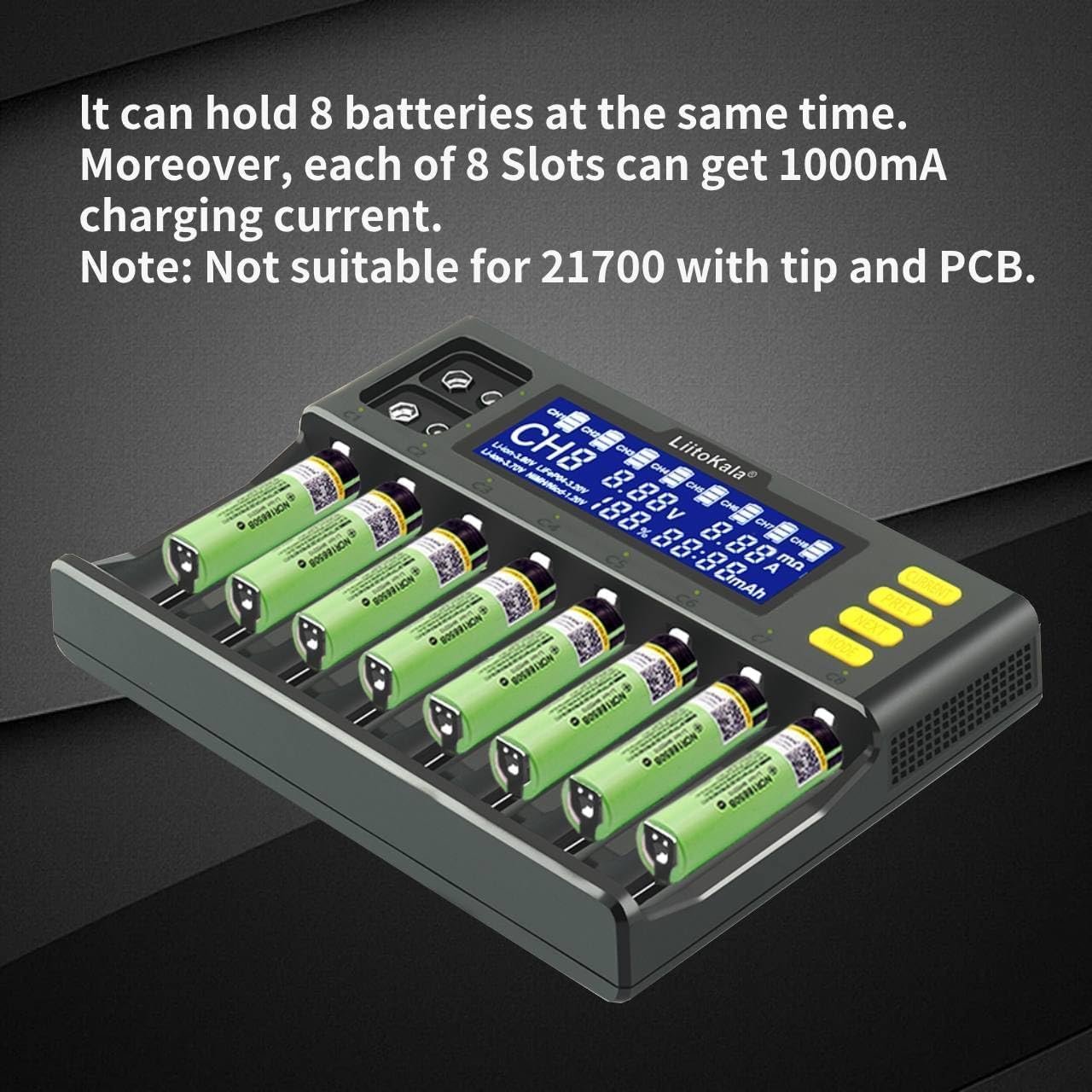

Whether you are using LED flashlights, Rechargeable USB Fan or Toys, the Liitokala Lii-S8 versatile battery charger offers a one-stop solution for your AAA AA or 18650 rechargeable batteries. Also, it automatically detects battery type (Lithium-ion or Ni-MH) eliminating any guesswork. Choose between300/500700mAh or 1000mAh charging current for optimal speed based on your battery needs. A LCD display keeps you informed of real-time voltage, current, time and capacity. Compatible with a wide range of battery sizes, including AAA, AA, C, 14500, 18650, 21700 Lithium-ion. Moreover you can charge not just one but 8 batteries independently at the same time. Charge any combination of batteries irrespective of size and type.

Liitokala Lii-S8 Specifications

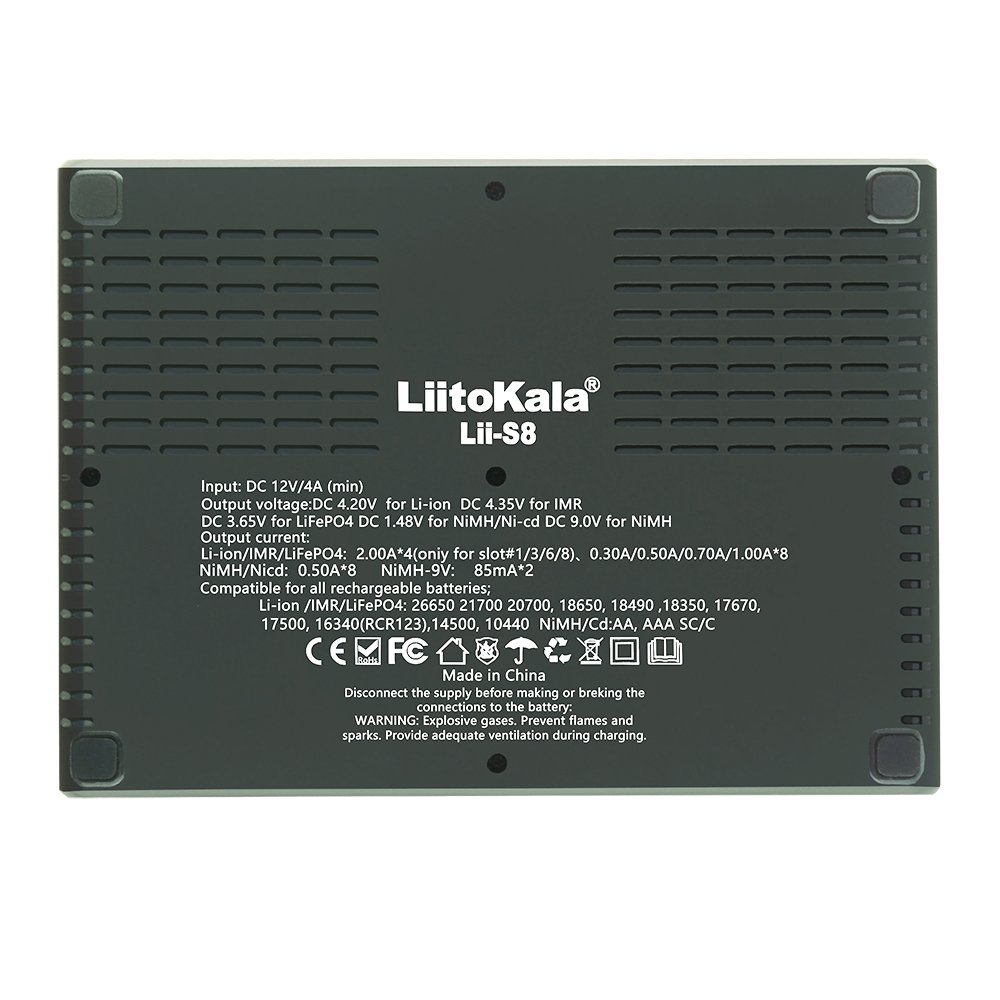

Specifications:
Brand Liitokala
Model  Lii-S8
Input Voltage DC12.0V4.0A
Output Voltage DC 4.2V for Li-Ion DC 4.35V for IMR DC 3.65V for LiFePO4 DC 1.48V for NiMH/Ni-cd
Output Current
Li-Ion/IMR/LiFePO4 2000mA*1(for slot 1/3/6/8 Solt),0.30A,0.50A,0.70A,1.00A*8
 NiMH/NiCd: 0.50*8
Constant Voltage, cut-off Current <100mA
No-Load Standby Current: <50mA
Compatible Battery Types
Li-ion / IMR/LiFePO4,26650, 21700, 20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd AA, AAA，SC/C

Size
195mm* 142mm*35mm

Weight
800g

 Features:
1.Intelligently distribute the charging current to charge the battery.
2.Compatible with Li-ion (4.20V / 4.35V) / IMR / INR / ICR / LiFePO4 (3.60V) and NiMH / Cd (1.2V) and 9V batteries.
3.Use a large, high-definition LCD screen to display battery information in real time.

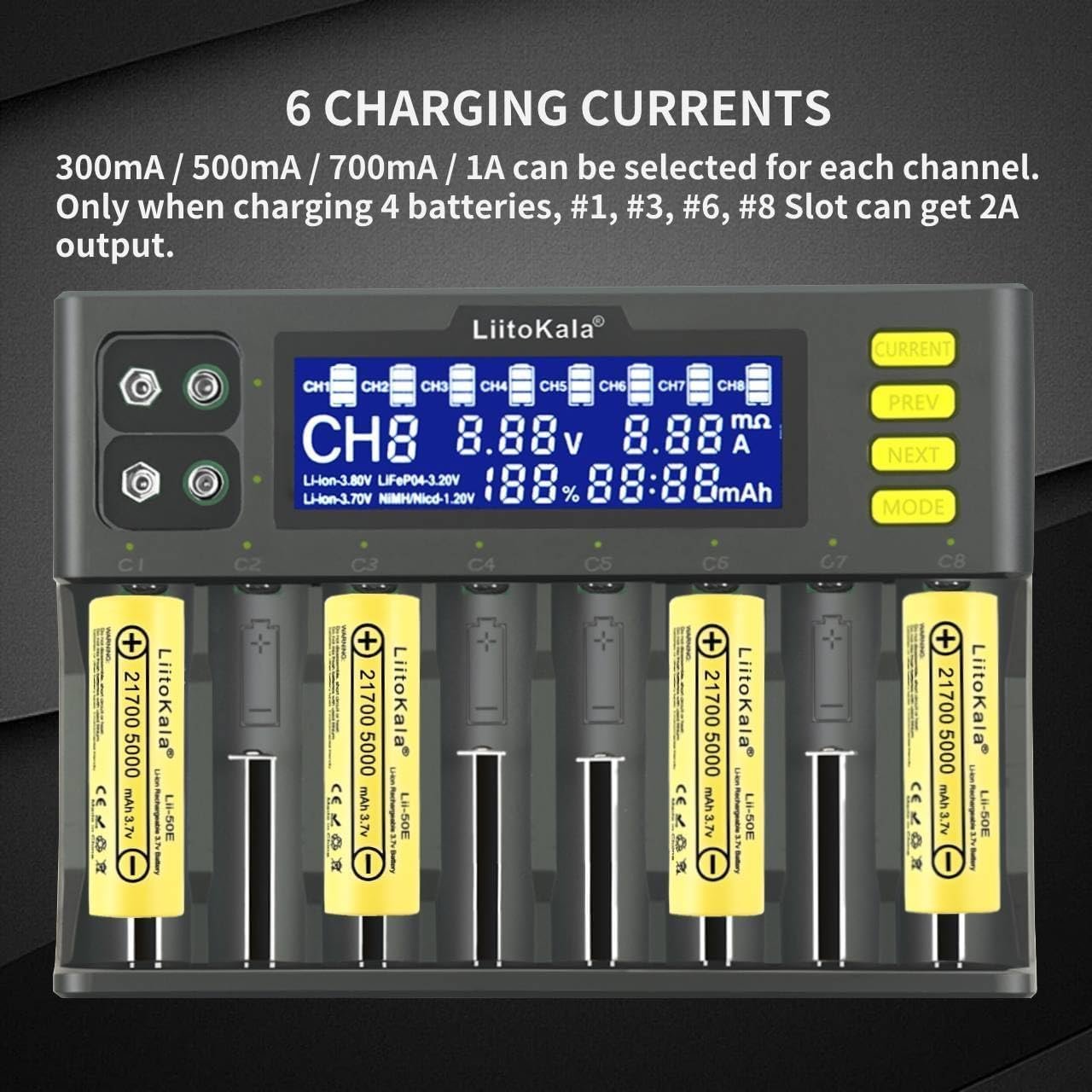

4.The charger’s 1,3,6,8, Slot can get 2A fast charge.

Key and display:

Button:

1.1 Button MODE: This button is the battery type selection button; Within 9 seconds of powering on the battery, click the MODE button to select the type of charging battery (Li ion 3.70V, Li ion 3.80V, LiFePO4-3.20V), but other types cannot be selected when charging nickel hydrogen/nickel cadmium (Ni MH/Nicd 1.20V) batteries; During the charging process, long press the MODE key to reselect the type of charging battery, but the previous charging data will not be saved;

1.2 Button NEXT (Next Channel): This button is a query button for slots 1 to 8. Every time this button is clicked, the channel displays charging data from low channel to high channel (CH1CH8 direction); Long press this button to keep the display screen in a constant light state, and long press again to release the constant light;

1.3 Button PREV (Previous Channel): This button is an 8 to 1 channel query button. Every time this button is clicked, the channel displays charging data from high channel to low channel (CH8CH1 direction); Long press this button to keep the display screen in a constant light state, and long press again to release the constant light;

1.4 Button Current: This button is the charging current selection button; The system will automatically configure the current based on the internal resistance of the battery, which remains unchanged within 9 seconds after being powered on and placed in the battery; If you want to change the charging current of a certain channel, you can first click the NEXT or PREV button to display this channel, then press and hold the current button, and when the current value flashes, press and hold the current button briefly to change the charging current of this channel; If you want to make the charging current of all installed battery channels the same, you can adjust the current by long pressing and then short pressing the Current key while the battery type is still flashing. At this time, the current values of all channels are the same;

Display LCD and indicator lights:

2.1 After the charger is connected to the power supply, the LCD display screen will fully display for about 3 seconds, and then only display null. At the same time, the indicator light corresponding to the channel will first turn red, then green, and then turn off. When null is displayed, the green light will remain on; Standby; The 9V charging channel indicator light is always green and waiting for charging;

2.2 When a battery is detected, the LCD will display the battery symbol/channel CH and the battery type of the channel (Li ion 3.70V, Li ion 3.80V, LiFePO4-3.20V, Ni MH/Nicd-1.20V)/charging current A/battery voltage V/charging time h/capacity mAh and percentage%/battery internal resistance m Ω, etc. After selecting the charging battery type (such as 3.20V/3.80V or default) and charging current, stop the operation, and the battery type will flash for 7 times, After about 9 seconds, the battery will be officially charged. At this point, the battery symbol will cycle up the ladder, indicating that charging is in progress, and the corresponding channel indicator light will turn red;

During the charging process, you can click the NEXT or PREV button to query the battery parameters of each slot; When the LCD screen is dimmed, clicking any button will light up the screen; Long press and hold the NEXT or PREV key to keep the LCD in a constant display state; When the charging is completed, the battery symbol remains full and displays 100%. The charging parameters are saved, and the indicator light remains green.

2.3 When abnormal conditions (short circuit/reverse connection, etc.) are detected in the battery or channel, the screen will display the corresponding battery channel CH, Err, all battery symbols, and the corresponding channel battery symbols flashing in full, and the corresponding indicator light will turn red to alert; When the 9V charging channel detects an abnormality in the battery or channel (short circuit/reverse connection, etc.), the screen display remains unchanged, but the two indicator lights will be constantly red at the same time.

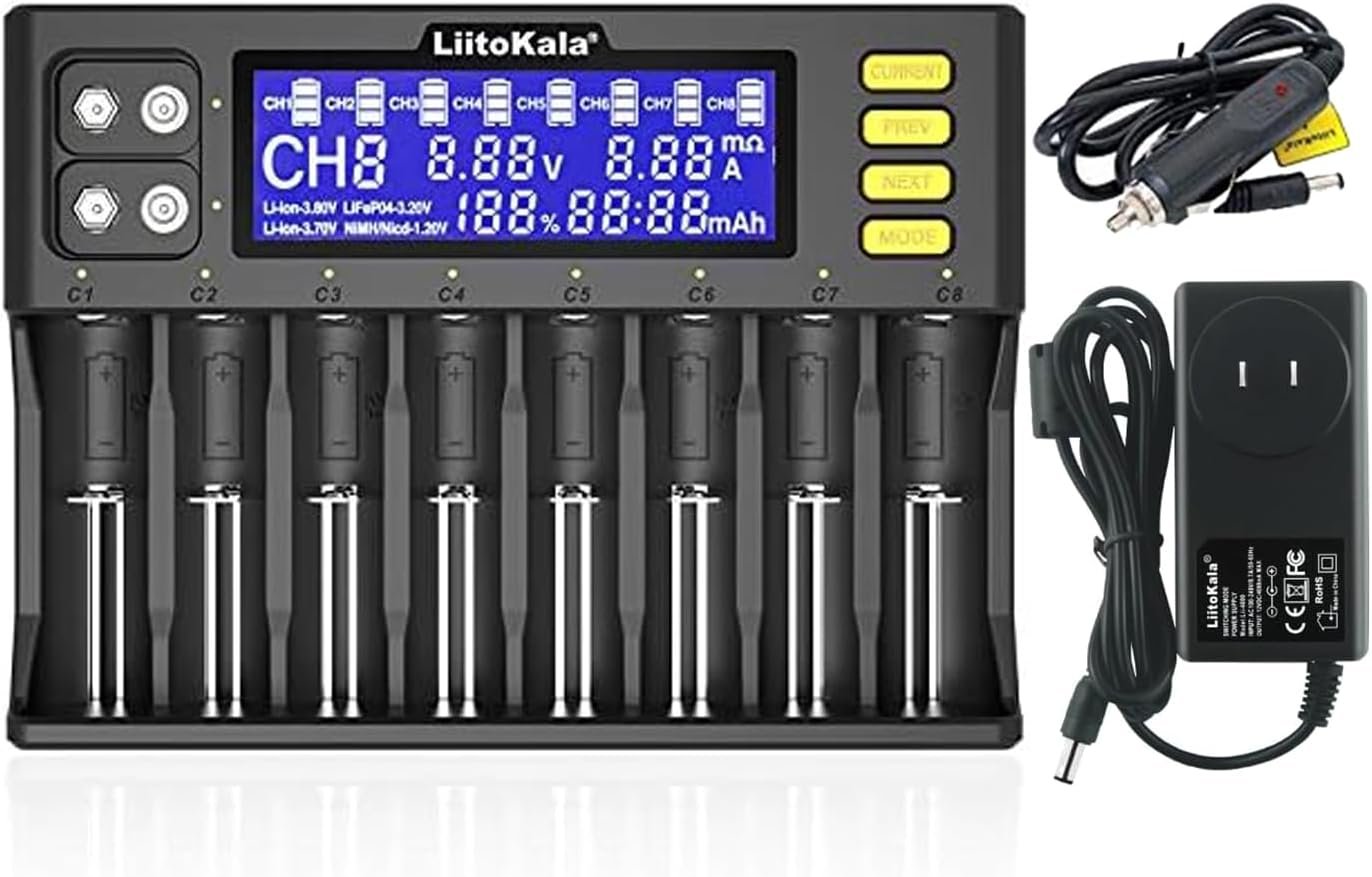

Package List:
1 x Battery Charger
1 x AC Adapter
1 x Car Charge Cable
1 x User Manual
