BRZHIFI DAMP20-BT5 Audio Amplifier Board Module TPA3116 with USB C

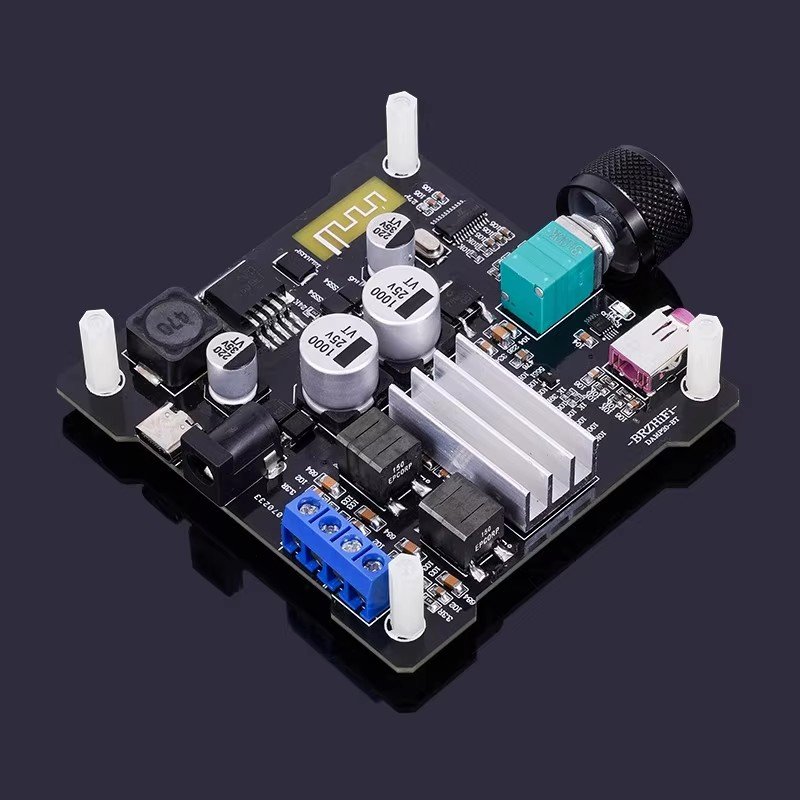

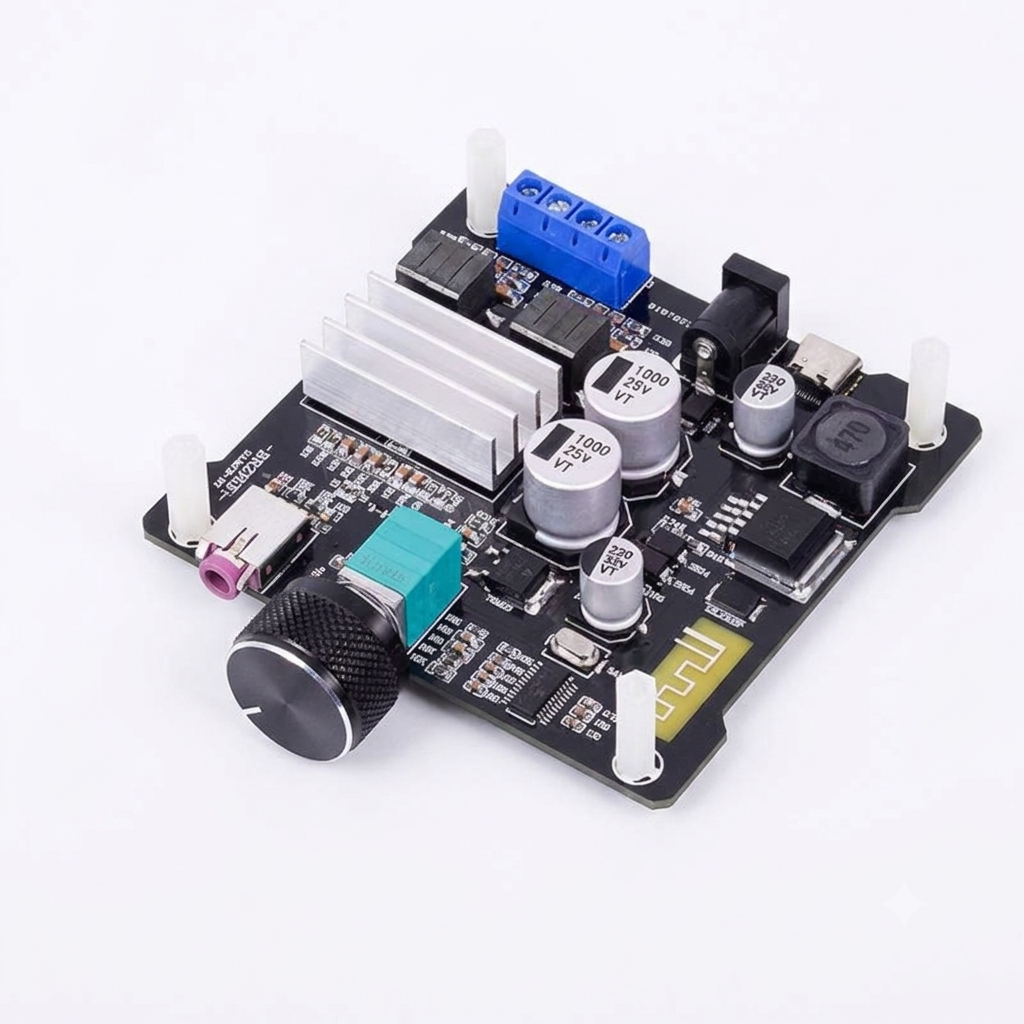

The BrzHiFi Damp-20-BT5 is a compact, high-efficiency Bluetooth stereo audio power amplifier board powered by the TPA3116 IC. Built for DIY audio enthusiasts, desktop setups, and custom speaker builds, it delivers up to 50W+50W of clear audio output. Featuring dual power input options via a standard DC jack or a USB Type-C port, this mini amplifier board offers maximum flexibility and high performance in an ultra-small footprint.

Key Features

• TPA3116 Class-D Chipset: High-efficiency audio amplification delivering crisp sound with minimal thermal dissipation.

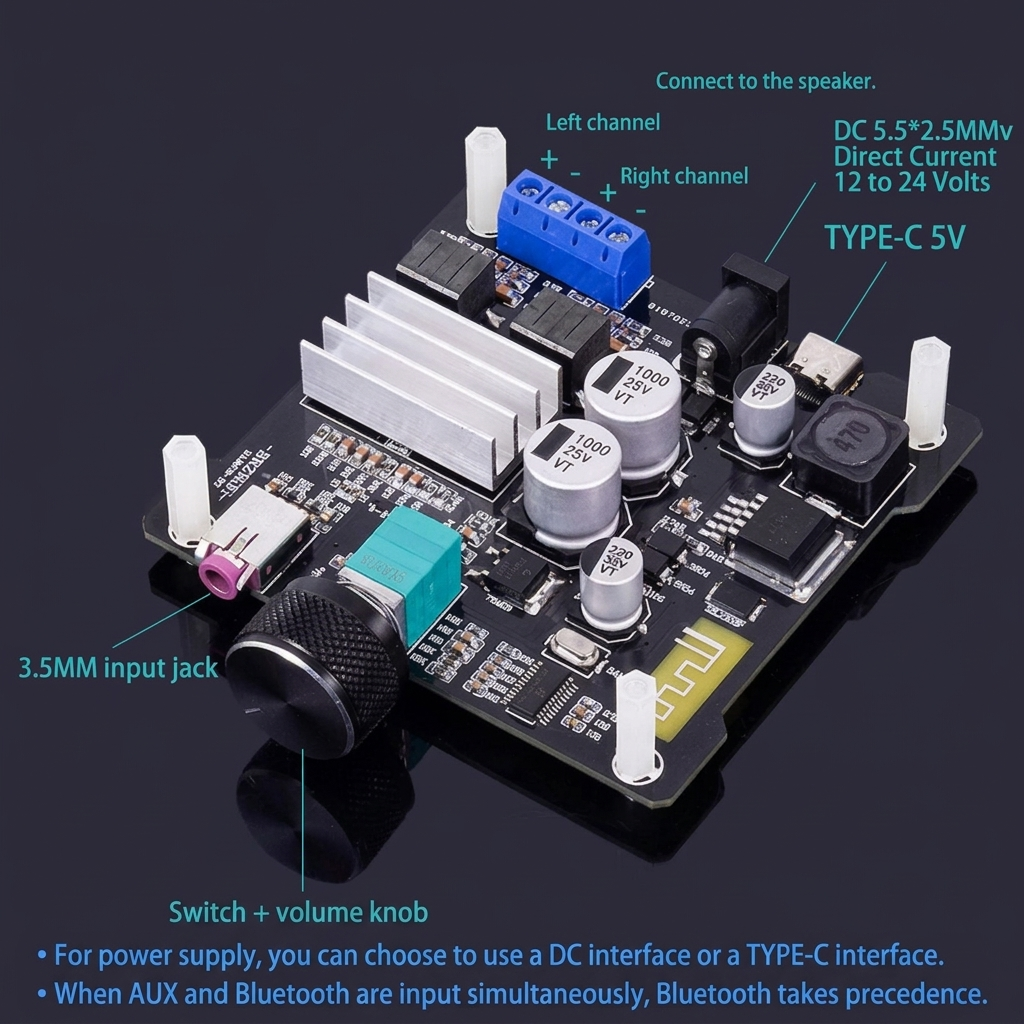

• Dual Power Input System: Flexible power options using either a standard 5.5×2.5mm DC barrel jack or a modern USB Type-C port.
• High Output Performance: Drives up to 50W per channel into 4-ohm speakers or 30W per channel into 8-ohm speakers.
• Ultra-Compact Form Factor: Measuring just 82 × 95 × 23mm, it easily fits into custom speaker enclosures and tight desktop setups.
• Plug & Play Convenience: Simple power connection and speaker terminal wiring make it ideal for DIY audio builds.

Technical Specifications

Frequently Asked Questions (Q&A)

1. What power supply is required for maximum output power?

For full output power (50W + 50W), use a DC 15-24V power adapter rated at 3A or higher connected via the 5.5×2.5mm DC port.

2. Can I power the BrzHiFi Damp-20-BT5 using a USB Type-C charger?

Yes, you can power the board via the USB Type-C port at 5V. However, to maintain adequate output performance, it is recommended to use a USB charger rated at 50W or higher.

3. What speaker impedance is compatible with this amplifier board?

The board supports both 4-ohm (4Ω) speakers (up to 50W + 50W output) and 8-ohm (8Ω) speakers (up to 30W + 30W output).

4. What amplifier chip does the BrzHiFi Damp-20-BT5 use?

It uses the popular TPA3116 Class-D amplifier IC, known for high efficiency, reliable performance, and low audio distortion.

5. What are the physical dimensions of the amplifier board?

The board measures 82 mm × 95 mm × 23 mm, making it suitable for compact and portable DIY audio projects.

Warranty & Return Policy

• 7-Day Easy Return or Replacement (Terms & Conditions Apply)
• Product must be returned in original condition with intact protective packaging.

Package Content

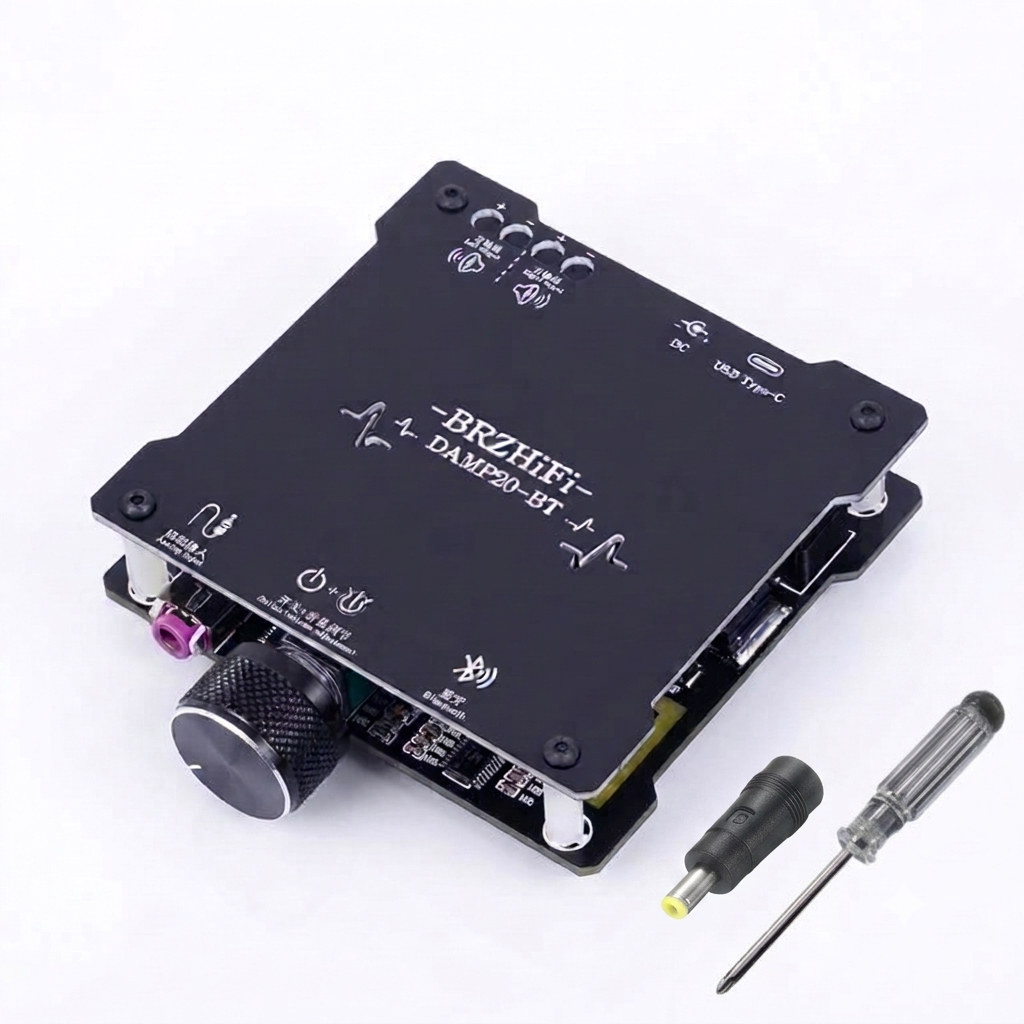

• 1x Damp20-BT5 board, 1x srewdriver, 1x 2.1mm DC jack converter
