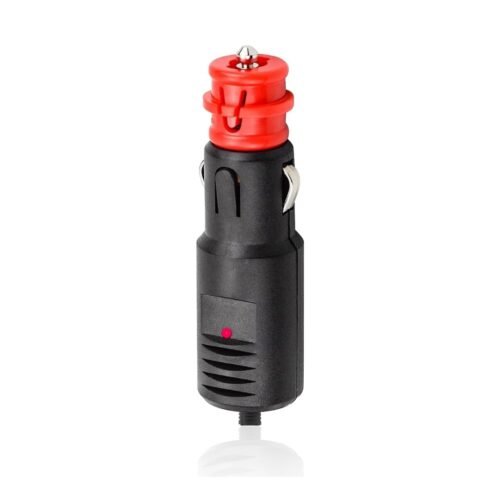

12V Car Male Plug Connector with 8A Fuse & LED for Tire Inflator Vacuum Cleaner Car Fridge

A high-power replacement adapter plug is provided by the 12V Car Male Plug Connector for Tyre Inflator Vacuum to power heavy-duty 12V DC automotive accessories. A maximum load capacity of up to 120W is supported through robust internal connections. Built-in circuit protection is delivered via an 8A glass fuse and a red LED status indicator, ensuring safe and reliable operation during vehicle maintenance and emergency tire inflation.

Features

• High-Power Capacity: Up to 120W of power (12V–24V DC, 8A) is supported by the 12V Car Male Plug Connector for Tyre Inflator Vacuum for high-current automotive electronics.
• Overload Circuit Protection: An integrated 8A glass fuse is featured to shield connected equipment and car sockets from short circuits and electrical overloads.
• On-Board LED Indicator: A red LED status light is integrated to provide visual confirmation of active power transmission.
• Solder-Terminal Connection: Internal solder terminals are provided for securing device power cables permanently to the plug contacts.
• Universal Socket Fitment: Standard 12V and 24V car cigarette lighter female socket compatibility is offered across passenger cars, SUVs, and commercial vehicles.

Description

A reliable replacement plug solution for repairing damaged or worn automotive accessory power cords is delivered by the 12V Car Male Plug Connector for Tyre Inflator Vacuum. Designed to plug directly into standard 12V or 24V car cigarette lighter sockets, seamless power restoration is guaranteed for high-demand tire inflators, car vacuum cleaners, and portable refrigerators.

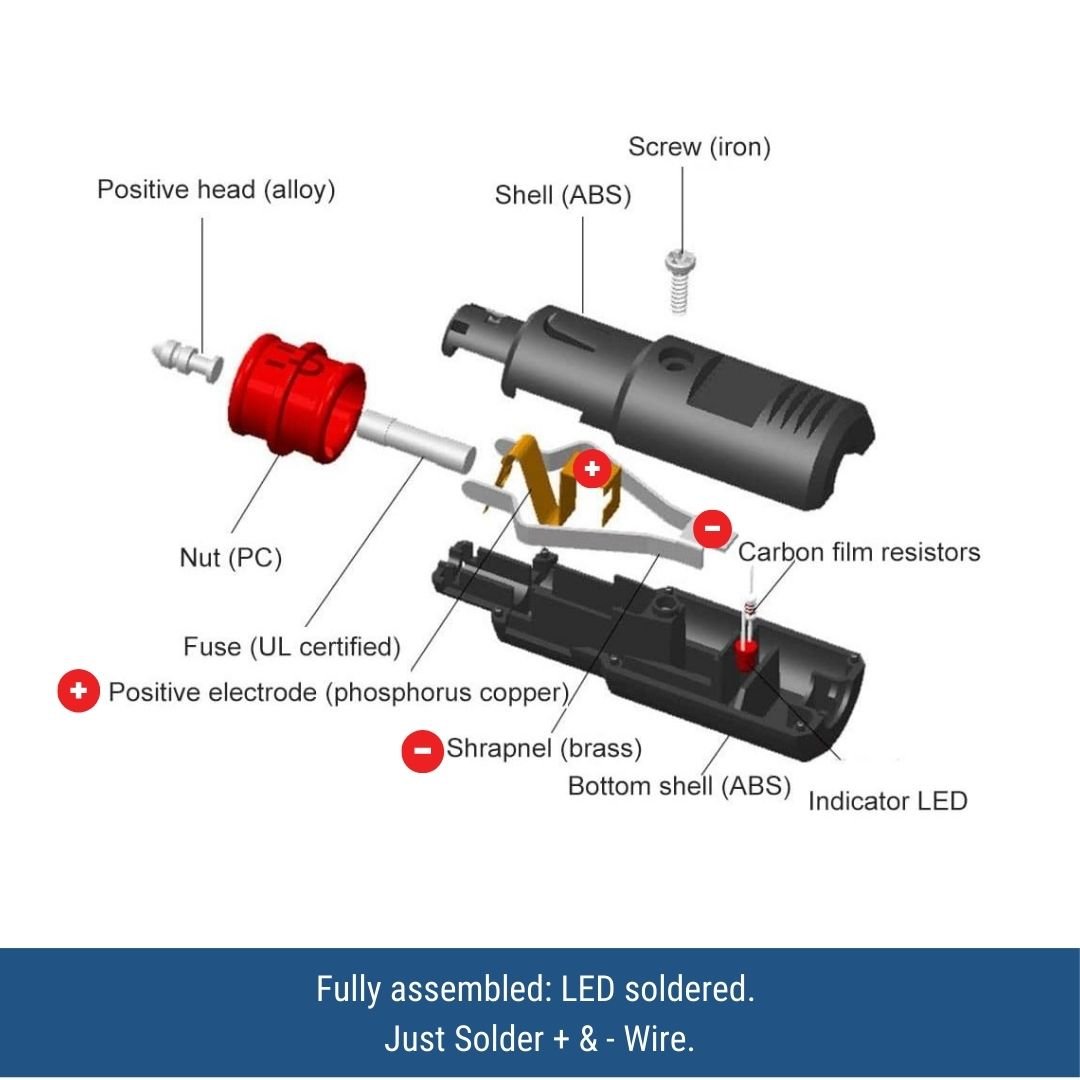

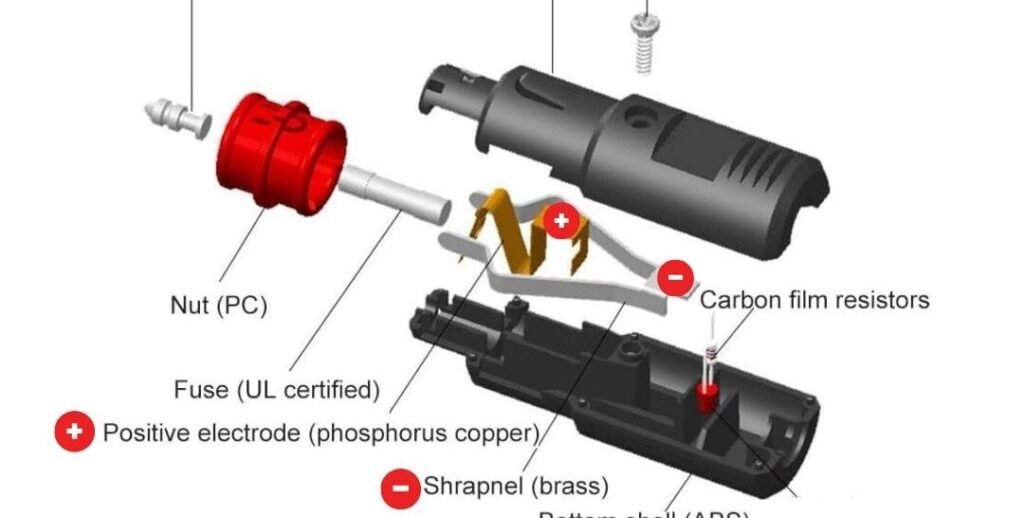

Constructed using durable ABS plastic, melting risks under heavy current loads are minimized. Safety is prioritised through the inclusion of an integrated 8A replaceable glass tube fuse (5x20mm). Convenience and diagnostic ease are offered through an on-board LED light that confirms live power, making it an essential DIY repair component for car owners.

Specifications

Compatible Device & Use Cases

Compatible Sockets:

• Standard 12V and 24V DC car cigarette lighter female sockets

Primary Applications:

• Direct plug replacement for high-power portable tire inflators and air compressors
• Power cord repair for handheld 12V car vacuum cleaners and auto detailers
• Power supply connection for 12V portable car fridges, coolers, and mini heaters
• Custom 12V DC DIY automotive power wiring projects up to 120W

Frequently Asked Questions (FAQ)

1. What maximum power wattage is supported by the 12V Car Male Plug Connector for Tyre Inflator Vacuum?

A maximum load power capacity of up to 120 Watts (8A @ 12V-24V DC) is supported by the plug connector.

2. Is wire soldering required to install this replacement car plug?

Yes, internal solder terminals are featured, requiring power cables to be soldered directly to the terminals for proper electrical contact.

3. How is circuit safety provided by this male plug adapter?

Overload protection is maintained through a built-in 8A glass fuse that disconnects power in the event of a current surge or short circuit.

4. Can the fuse inside the 12V Car Male Plug Connector for Tyre Inflator Vacuum be replaced?

Yes, the plug casing can be unscrewed to replace a blown 8A glass tube fuse (5x20mm) with a new fuse of identical rating.

5. How is live power confirmed when the adapter is plugged into a car socket?

Visual confirmation is provided by an on-board red LED indicator light that illuminates as soon as power is received from the socket.

Why Choose This

• 120W High Power Support: Heavy current demands of tire inflators and car vacuum cleaners are handled reliably.
• Integrated 8A Fuse Protection: Connected automotive tools and vehicle wiring are safeguarded against overload damage.
• Durable ABS Construction: Impact and heat resistance are offered to withstand rigorous automotive garage and road use.

Safety & Usage Instructions

• Exceeding the maximum 120W / 8A load capacity of the plug connector should be avoided.
• Correct wire polarity must be verified during soldering to prevent short-circuiting the vehicle electrical system.
• If the fuse blows, replacement must be performed using an 8A glass fuse of the exact same 5x20mm dimensions.

Package Content

• 1 × 12V Car Male Plug Connector with 8A Fuse & LED (PP Bag Packaging)

Warranty & Return Policy

• 7-Day Easy Return or Replacement (Terms & Conditions Apply)
• Product must be returned in original condition with intact protective packaging.
